BTT E3EZ case for sidemount

Model details

Platform
Printables
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
STLSTEP
  • 21 Likes
  • 180 Downloads
  • 0 Makes
  • 0 Comments
  • 863 Views

Author:Stiebl

Published

Download on Printables

Description

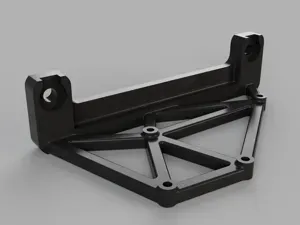

Wanted a side mounted case for the E3EZ with enough free space for cable management.

Added the logo from here: https://www.printables.com/de/model/500230-bigtreetech-manta-logo

Printed in PETG with 4 walls and 15% infill. For mcu fan a 6025 fan is used.

I also share the step file if a other fan size is needed.

BOM: 8x M3 heat inserts (4x for mcu, 4x for mcu fan)

4x M3 screws for mcu fan (lengh depending on the used fan)

3x M4x10mm screws and nuts for printed T-Nut insert to fix the mount

2x M5 screw (i reused the screws for old display mount)

Tags

mainboardender3probigtreeteche3ez
