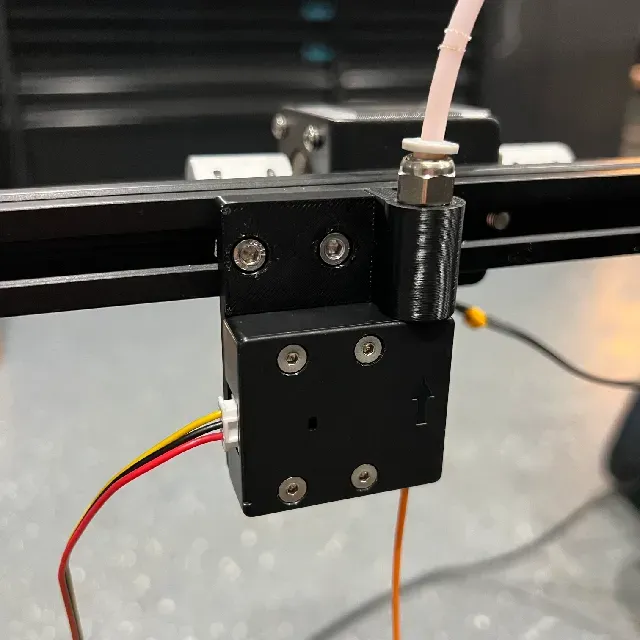

Ender 5 Plus Filament Sensor Mount for Bowden Extruder Delete

Description:

This mount can be used to tidy up the filament sensor and filament feed on an Ender 5 Plus when deleting the bowden extruder motor in favor of a direct drive extruder. For example, with an Biqu H2 V2 extruder.

Printing:

- 0.4mm Nozzle, 0.2mm height, 8mm brim, ASA - Be sure to print the PETG Feed inlet (small hole) side down - FlashForge ASA: amzn.to/3szLrtP Parts:

- (1) of PC4‑M10 Chamfered Style: amzn.to/3spa8ZX - PTFE Tubing 2mm ID x 4mm OD: amzn.to/3KTDAhm - (2) of M3x8mm Socket Head Cap Screw: amzn.to/3EdhXof - (6) of M3, 4.2mm OD, 5mm Length Heat Set: aliexpress - Re-use the four screws from the filament sensor - Re-use the two screws from the frame chassis mount

Note: Amazon links are affiliates.
