SpeedyBee F405 Wing mount

This is a mount which offers a couple of ways of securely holding the SBF405 Wing.

I don't like attaching flight controllers to airplanes with just velcro/hook and loop because they are never securely held in place and the FC can sense the movement in the velcro (as the airplane moves around) and will react to it. Also, it can be difficult to screw securely into foam.

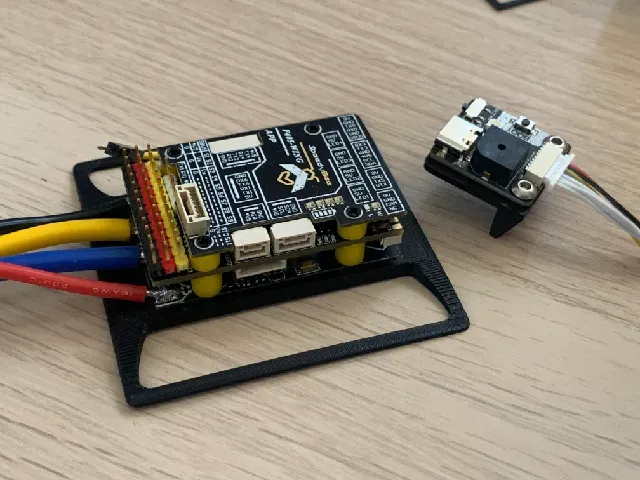

This mount has a wider and longer cross-section than the controller so it will hold it securely to the model. You can attach the mount to the model with very thin double-sided tape or adhesive then hold the FC in place with more double-sided tape placed along the inner ledge. You an also hold the FC using velcro placed in the centre space provided. This will hold better than velcro alone.

The mount holds the FC very tightly (with just friction-fit) so you may need to scale it if your printer doesn't print the dimensions accurately enough.

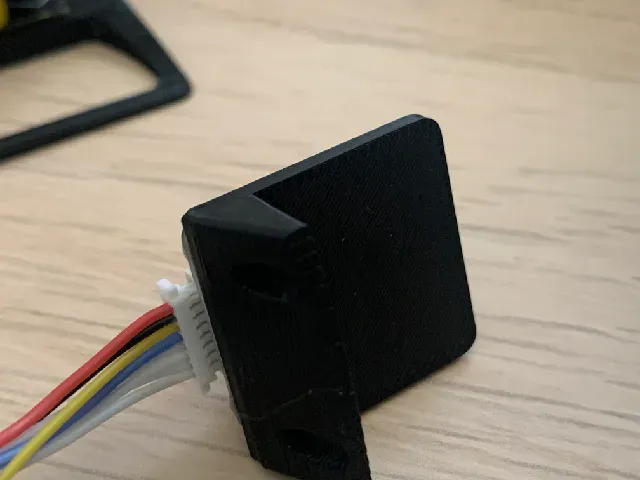

The USB bracket was meant to hold the USB add-on board to a 90 degree edge inside one of my models. It was attached with hot glue. The board is attached to it with M3 screws.

Update - Feb 2024: Added v2 with 3mm diameter screw-holes
