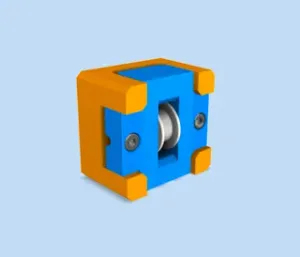

Y-axis belt tensioner V2
Printables
3D model · Printables
Y-axis belt tensioner
Model details
- Platform
Printables
- Price
- Free
- License
- CC-BY-NC-ND
- Non-commercial use only, with credit and no modified versions.
- Formats
- STLGCODE
- 488 Likes
- 1 983 Downloads
- 85 Makes
- 130 Comments
- 14 152 Views
Description
Y-axis belt tensioner for standard gt2 20T or toothless idler with 3mm bore
--- I released a new version with only two screws ---
Fits on Prusa
- MK3 - MK3s - MK3s+ Fasteners:
- 1x M3x20 screw - 2x M3x10 screw - 3x M3 hex nut - 4x M3 Nyloc hex nuts - 4x M3x16 screws Print instructions:
Material: PETG Perimeters: 3 Infill: 20-25% Infill pattern: Rectilinear Layer height: 0,15 mm Supports: Supports from build plate only
Assembling:
Assemble the parts with the two little holes downside.
If the blue part is upside down the belt path is wrong.
Tighten the screws equally.
Similar models
Free
Prusa Mk3 Y-axis belt tensioner V2 - GT2 20T w/ 5mm bore
Printables
Free
X-Axis revision with belt tensioner
Printables
Free
Simple Prusa i3 MK4 s Y- Axis belt tensioner (3 mm and 5 mm versions)
Printables
Free
Sunlu S8 Y-Axis Tensioner **Now tool-less adjustment**
Thingiverse
Free

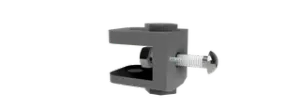

Ender 3 V3 KE/SE Y-AXIS Tensioner Redesign (For Tighter Belt)
Printables
Free
Y-Axis Belt Tensioner
Thingiverse
Free

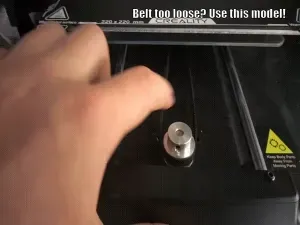

Y-axis belt tensioner for Ender 3 v3 KE or SE
