Tiny printer test - quick print!

Platform: Printables
Price: Free
License: CC-BY-NC; Print and modify for yourself with credit; no selling the model or prints.
Formats: STL

1 104 Likes
5 890 Downloads
37 Makes
44 Comments
17 770 Views

Author:splabble

Published 2024-07-20

Download on

Printables

Description

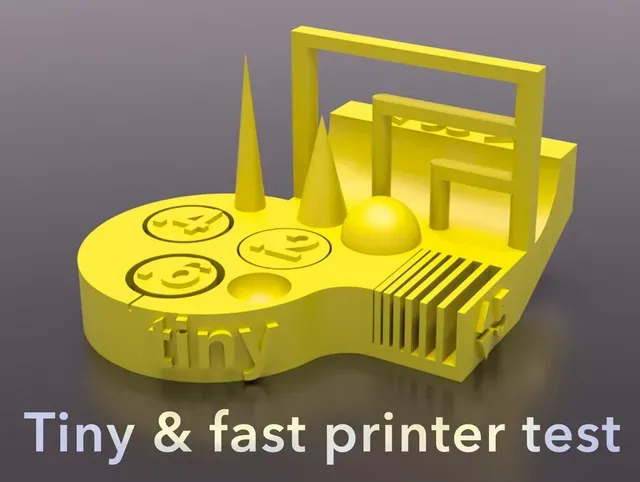

* The TINY printer test* is designed to print in minutes, so you can quickly tweak & test your printer settings and get better prints.**

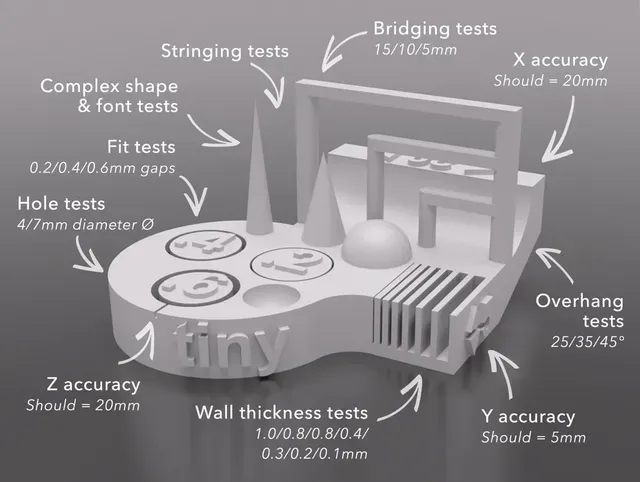

Just a few centimetres across, it can print in as little as 10/15 mins and includes 10+ different tests:

- Hole fit tests (0.2/0.4/0.6mm gaps)

- Bridging test (15/10/5mm)

- Dimensional accuracy tests (X/Y/Z/ØXZ/ØYZ)

- Overhang tests (25/35/45°)

- Wall thickness tests (1.0/0.8/0.8/0.4/0.3/0.2/0.1mm)

- Stringing & retraction tests

- Complex shape and font tests

- Hole test

- First layer adhesion

Print without supports, 20%+ infill and whatever settings you want to test. The slower you print and smaller the layer height the better it is likely to look.

Please do comment with your suggestions on how it could be improved.

Category: 3D Printing Tests
