EDC Tray StandBy Mode MagSafe iPhone and Apple Watch Stand

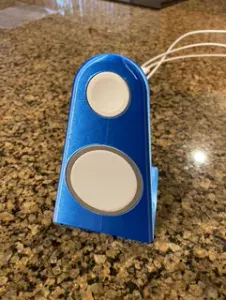

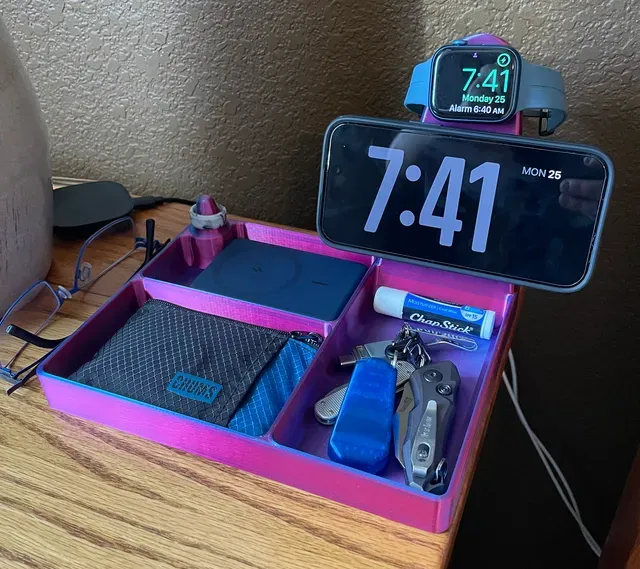

iOS17 has a StandBy setting, aka “Nightstand Mode”, where a different display is shown when the iPhone is attached to the MagSafe charger and is in landscape orientation. This stand was designed around this new mode and also adds an Apple Watch charger and EDC tray. There are two versions depending on which Apple Watch charger you have. If the Apple Watch charger has a depth of ~8mm, please use the 8mm version. If the Apple Watch charger has a depth of ~6mm, please use the 6mm version.

This was printed on a Prusa mk3s. There is very little tolerance in the spots where the chargers fit and the cord tracks as I didn't want them to come loose. Feel free to scale the model if your charger(s) do not fit. I recommend at least 0.15 resolution and whatever infill you want. Print it upright as shown in the pictures. I tried to design it to not need supports but the top of the Watch circle can get a little gnarly on the backside. I was okay sanding it down a little but feel free to add some supports if you want.

Both charger cords should be fed into the stand from the front and then guided down the channels. Start with the MagSage cable first and push it all the way toward the front as you feed the Watch cable down the same channel. The cord channels on the bottom of the stand are different sizes because the cords are different sizes. The phone cord should be routed directly down the smaller channel and the watch cord in the larger channel.
