Silicone, sock, mold

Model details

Platform
Printables
Price
Free
License
CC-BY
Print, modify and use commercially — credit the author.
Formats
STL
  • 27 Likes
  • 65 Downloads
  • 0 Makes
  • 0 Comments
  • 1 293 Views

Author:Anthony Schwartz

Published

Description

Better sock mold for E3D V6 hot end using JB Weld RTV, red high temp red silicone gasket maker 288 degree C Constant working temperature 344 degrees C max. For higher temperature use the JB weld RTV copper its constant working temperature is 344 degrees C max temp 371 degrees C. 0.2mm layer height no supports. You'll need between 6 to 8 g of silicone per sock. 1g = 1ml

https://a.co/d/06utsRx - red 7$

https://a.co/d/aOz8zQX - copper 13$

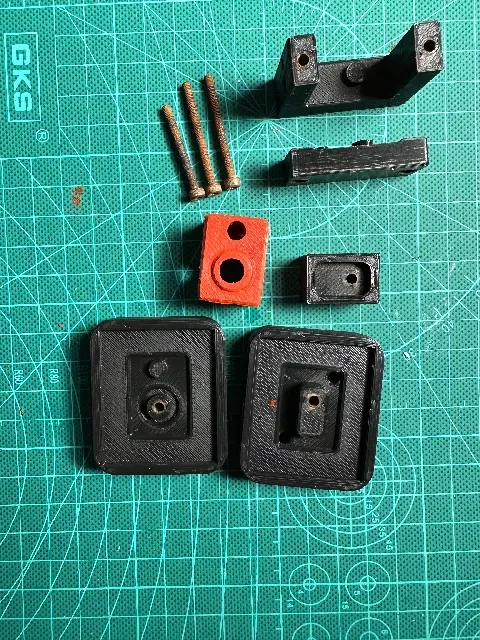

You'll need 1 x 30 mm M3 screw and 2 x 35 mm m3 screws and 3 x m3 nuts and a catheter tips syringe

https://a.co/d/2ND8LEv - syringe

You might be able to get away with just using rubber bands not tested.

I just cut two small slits to fit around the wires and didn't cut it like the regular silicone sock molds

Different mold, same process
