Kingroon KLP1 Side Panel Magnet Door (Spool Holder)

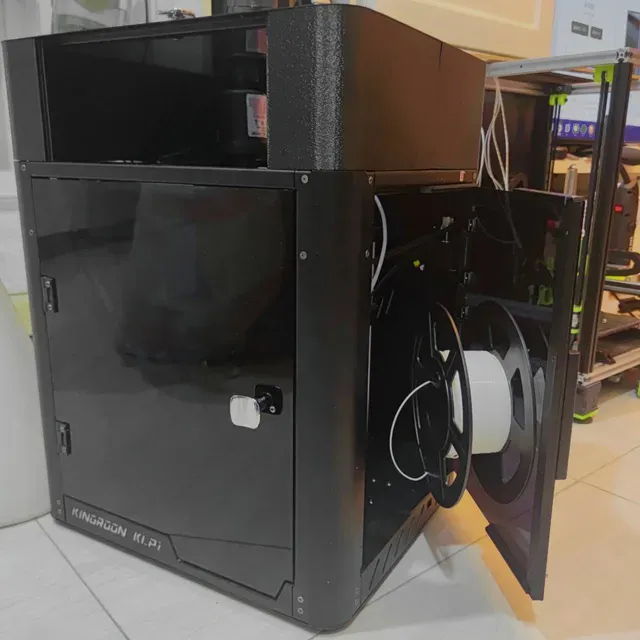

My design is to make the side panel of the KLP1 an openable door so that you can install the filament in the door and hide it inside the machine to retard the filament from moisture.

The design of chain is designed to compensate for the weakness of FDM's layer bonding, while avoiding adding too much thickness.

Needs:

Button Head Screw M3X6~8 x12

Flat Head Screw M3X5~8 x12

Flat Head Screw M3X10 x4

Flat Head Screw M3X25 x6

Socket Head Screw M3X10 x4

Socket Head Screw M3X15 x2

Ø10mm magnets (1~3mm high) x10

Print Settings

Rafts:

No

Supports:

No

Resolution:

- Infill:

Within 15%

Filament: ABS Black

Notes:

1. The design is suitable for support-free printing. Observe the part and adjust to the appropriate printing angle.

2. Ensure that the number of prints matches the number of prints indicated on the part name.

3. Since my machine has undergone strict dimensional calibration, the tolerance on the part design is almost 0. It is recommended to reduce the tolerance to at least 0.3mm (150mm size) before printing, otherwise you may have to make good use of the inner and outer holes shrinking function in your slicer in order to obtain a usable printable part.

4. If you don't know how to assemble, check the step file.
