Micro Swiss NG dual 5015 fan shroud

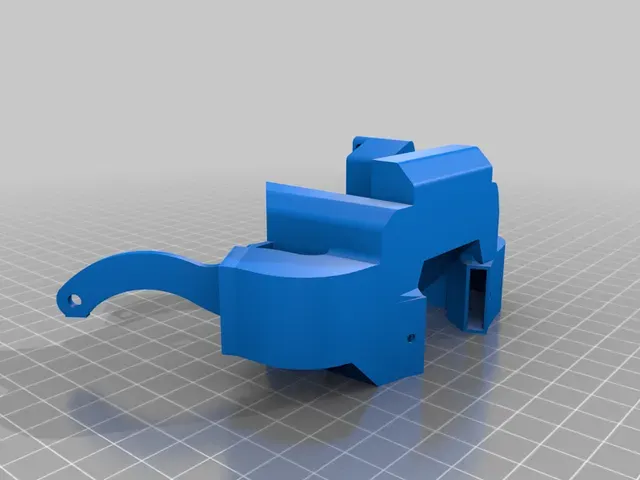

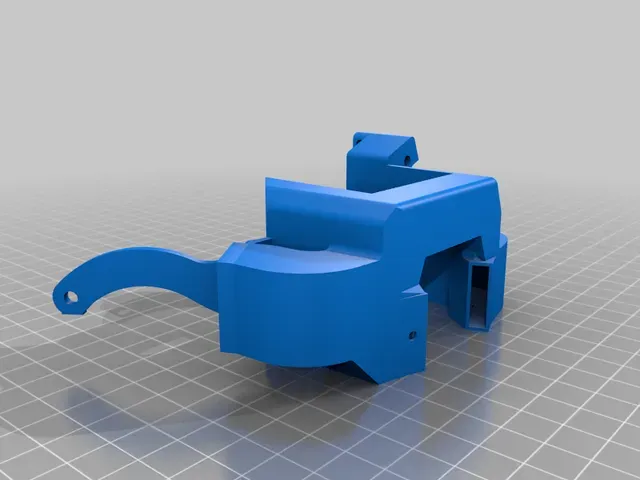

Dual 5015 fan shroud for micro swiss NG

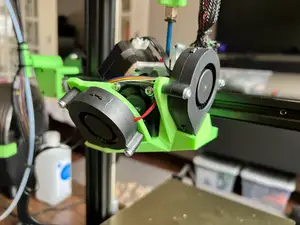

Designed for use on ender 5 so no print volume is lost with dual 5015 part cooling fans - Created because other dual 5015 shrouds out there reduce available print volume on ender 5

Files available for 4010 and 4020 heat break fans

Ducts are big for high air flow and there is a cr touch mount

Cr touch and heat break fan secured with captive m3 nuts

Remixed from the simplified NG shroud

Supports should only be needed on the outside of the model - not inside any ducts

Step files provided for any one who wants to improve on my design

BL/CR touch offsets:

X = 37mm Y = -29mm

Hardware needed:

- 4x m3x16-20mm bolts (for 4010 heat break fan) OR 4x m3x30mm bolts (for 4020 heat break fan)

- 2x m3x25mm bolts (1 for each 5015 fan)

- 2x m3x8mm bolts for cr touch mount

- 8x m3 nuts

Print Settings

Printer Brand:

Creality

Printer:

Ender 5

Rafts:

No

Supports:

Yes

Resolution:

0.2

Infill:

10%

Filament: eSun PLA+ Blue Post-Printing =============

Category: 3D Printer Parts
