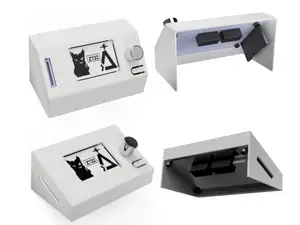

Single part case for 12864 MKS Mini Displays (2 options)
Printables
3D model · Printables
LCD 12864, LCD 12864A/B, Full Graphic Smart Display single part case
Model details
- Platform
Printables
- Price
- Free
- License
- CC-BY
- Print, modify and use commercially — credit the author.
- Formats
- STLSTEP
- 10 Likes
- 134 Downloads
- 1 Makes
- 1 Comments
- 683 Views
Description

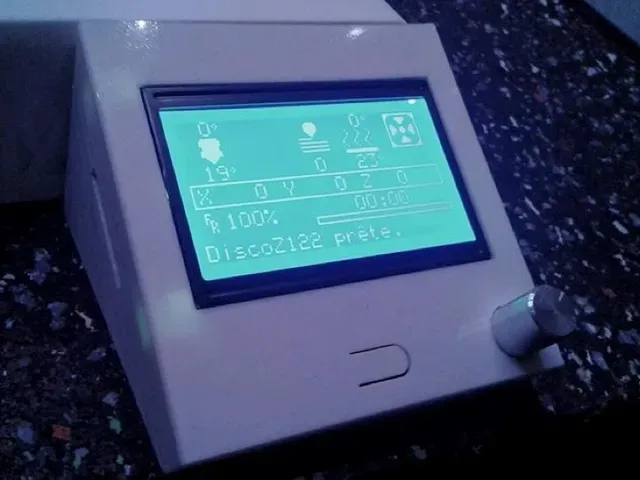

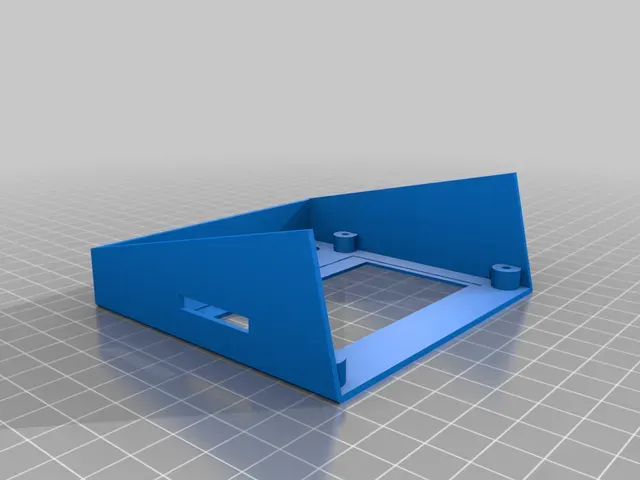

Single part case 12864 LCD Full Graphic Smart Display
inspired from the great design of the "LCD MKS Mini 12864 Mount Enclosure Box Caja" by Campy : https://www.thingiverse.com/thing:2915718
BOM : 4x M3x12 screws
(Don't tight too much the screws to prevent warpage of the red board).
STL & STEP formats are available.
Edit 2018/12/01 : addition of a more compact version "v2"
Edit 2020/07/19 : addition of a special version for last generation of LCD12864A/B from Makerbase ( https://www.aliexpress.com/item/33018110072.html )
Print Settings
Printer:
D Z122
Rafts: No
Supports:
Yes
Resolution: 200 um
Infill:
33 % with 3 external layer walls
Filament:
PolyMaker PolyMax White
Category: 3D Printer Parts
