LM2596S DC-DC Step Down Power Buck Converter Module Holder

This is a super simple holder for a LM2596 step-down buck converter module, it helps with mounting the module within a larger enclosure without shorting anything out.

I bought this particular module from Banggood at the link here:

https://www.banggood.com/LM2596S-DC-DC-Step-down-Power-Module-2A-Adjustable-Buck-Module-Super-LM2576-p-1203441.html

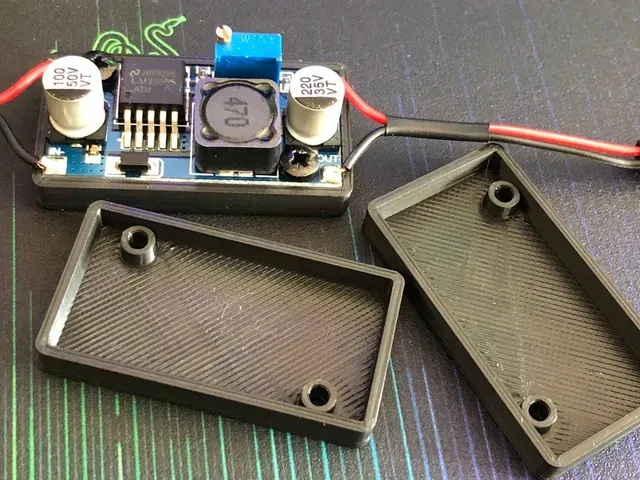

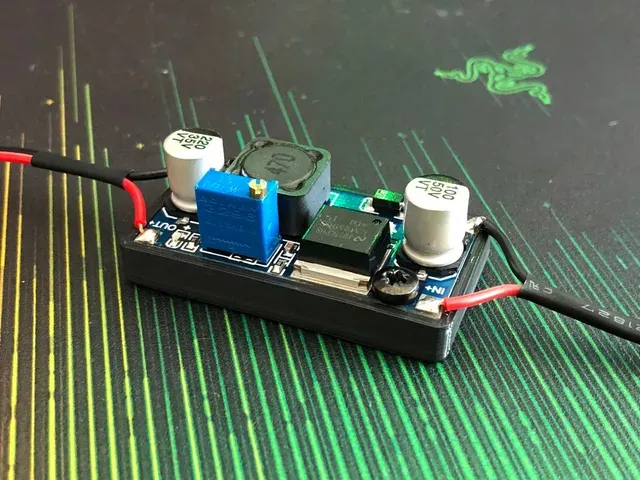

It's a tight fit, the board literally "pops" into the enclosure, and is fixed in place with two M3 6mm screws.

Also included are the STEP and Fusion360 files, the board width and length are user parameters. If your board is slightly different you should be able to adjust the parameters easily.

Print Settings

Printer Brand:

Creality

Printer: Ender 3

Rafts:

No

Supports: No

Resolution:

0.2

Infill: 20%

Filament:

Creality PLA Black

Category: Electronics
