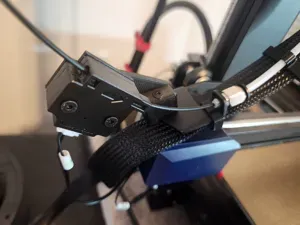

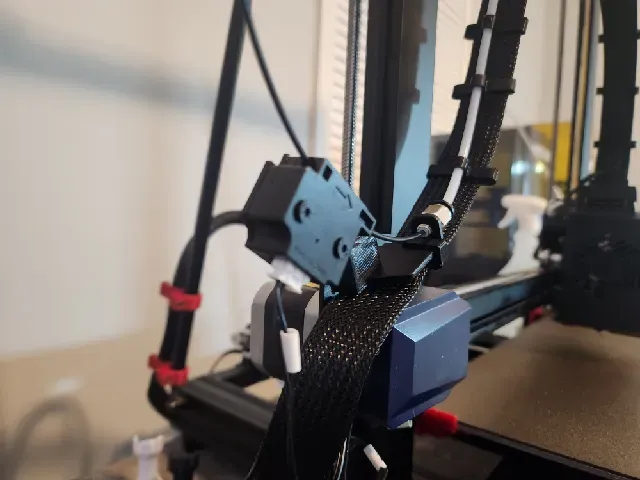

Anycubic Filament Runout Sensor Redirection Mount for Kobra 2 Max / Kobra 2 Pro / Kobra 2 Plus/ Kobra 2 Neo / Kobra 2

This allows redirection of filament for easier travel to hot end when printing with a top mounted spool holder.

Installation and Design explanation:

Runout Senor Bracket: Tighten down the bolt to sensor bracket to the bottom base. Then back your bolt off just enough, so your sensor bracket can move freely up and down.

Bottom Base: is designed if there is too much tension and friction with your filament going through the filament sensor it will slightly turn to show you there is a problem.

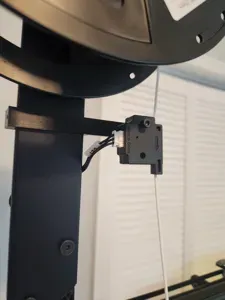

Other Option is Fixed mount allow no movement. No Safety Latch feature.

Updated Model 11/29/2023 v1.5 * Thickened Doesn't flex during repeated retractions. If printed with too low of infill.

Works great with this spool holder:

https://www.printables.com/model/658306-anycubic-kobra-2-max-top-side-mount-single-or-dual

Print with 25% infill

Hardware required M3 Bolts
