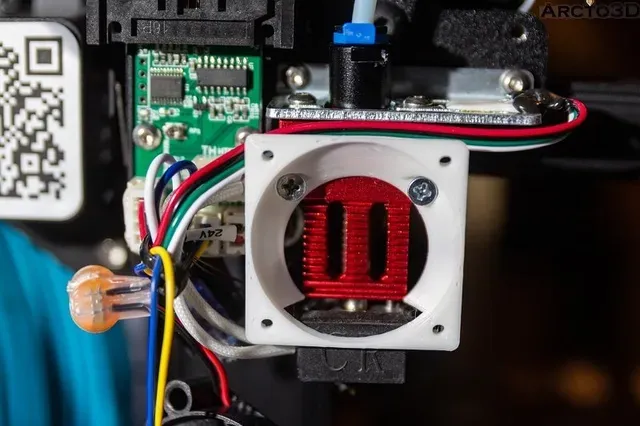

Creality CR 6 SE Hotend Fan Duct Adapter for quiet 40mm fan

This is a mod for the new creality CR-6 SE/Max to replace the stock (noisy!) 30 mm hotend fan with a larger (and quieter) 40x10 mm 24V fan. The supply is 24V.

Remixed to make the screw holes wider.

Replace the part cooling fan as well: https://www.thingiverse.com/thing:4736963

You will need:

1: 40x40x10mm 24V (quiet) fan

2: M3x10mm screws to fix the adapter to the hotend

4: M3x14+mm screws to fix the fan to the adapter

Buy a quiet 40x10 mm 24V fan: https://arcto3d.se/product/quiet-40mm-ball-bearing-fan-20dba-24v-4010-hot-end-mainboard-fan-for-3d-printers/

Silent fans for the CR-6: https://arcto3d.se/product/silent-fan-kit-for-creality-cr-6-se-max-etc-3d-printers-hotend-psu-board-cooling-fan-kit/

Only the 40x10 24V hotend fan: https://arcto3d.se/product/quiet-40mm-ball-bearing-fan-20dba-24v-4010-hot-end-mainboard-fan-for-3d-printers/

Check these videos for fan noise: https://photos.app.goo.gl/jdMqsGrh2S1EP6uk7

Gudie on how to install it and the fans: https://arcto3d.se/guides/installing-our-silent-fan-kit-on-creality-cr-6-se/

Print Settings

Printer:

Creality CR-6 SE

Rafts: No

Supports:

Yes

Resolution: 0.16

Infill:

25%

Filament: Generic PLA/ABS/PETG/ASA Notes:

Printing it in PLA works fine if you only print PLA

Category: 3D Printer Accessories
