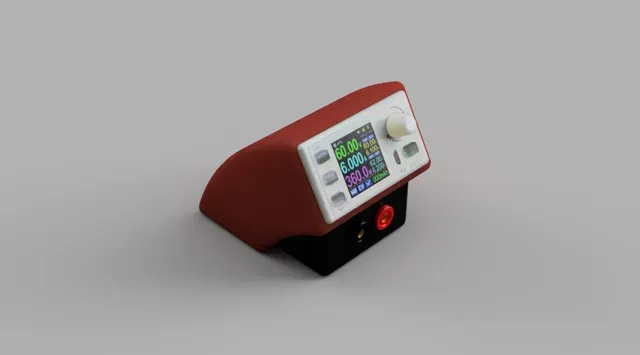

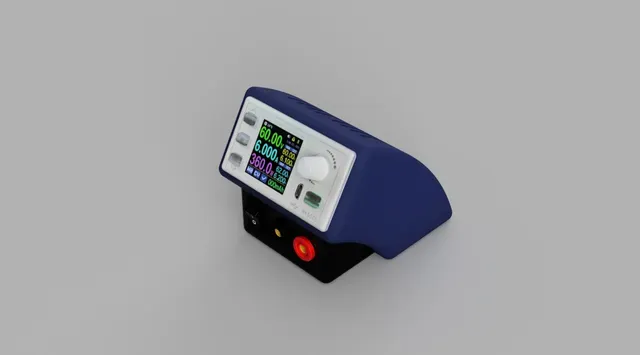

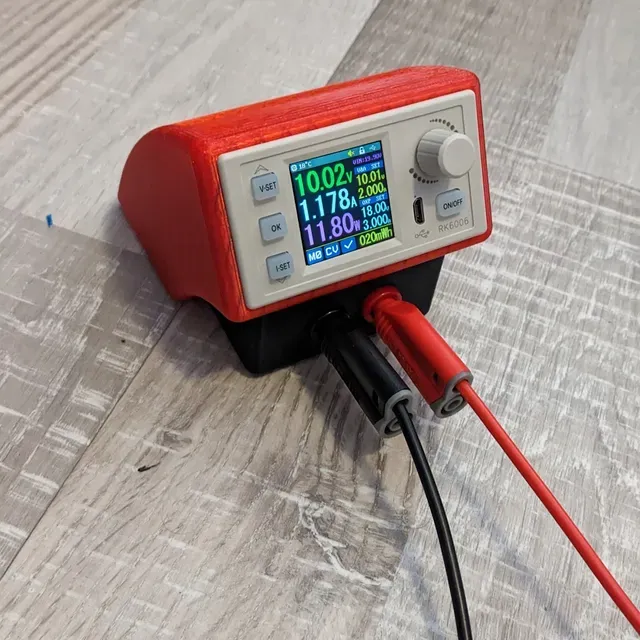

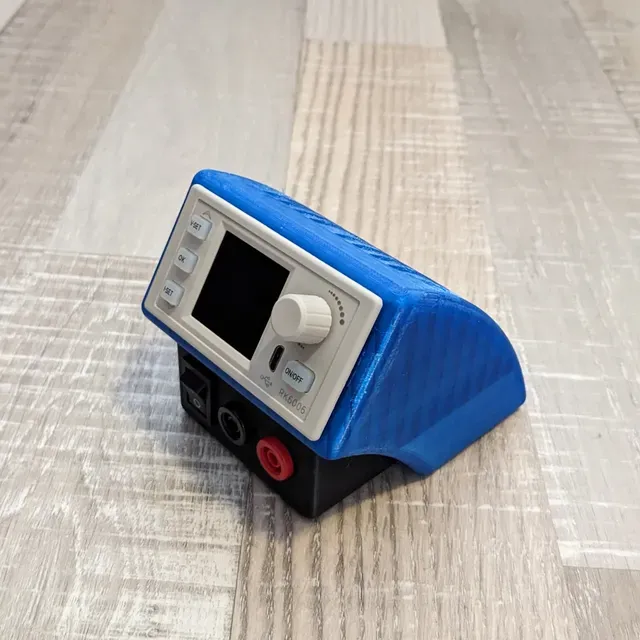

Desktop Power Supply

Compact power supply for desktop use.

Notes:

- Required: Use a USB-C adapter/powerbank that can supply 12V minimum - Recommended : Set the ZY12PDN USB-C board to use the maximum voltage (purple led indication) - Required: Configure power setting of the RK6006 according to the power source used - Recommended: Order the bluetooth version of the RK6006 as this includes a temperature sensor - Required: Use supports for all parts except the dps_clip and dps_tool.

Printed Parts:

Pcs Part Description

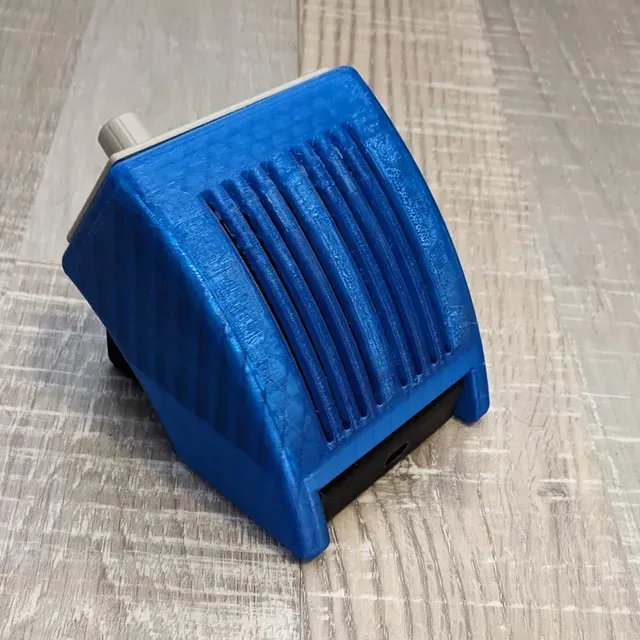

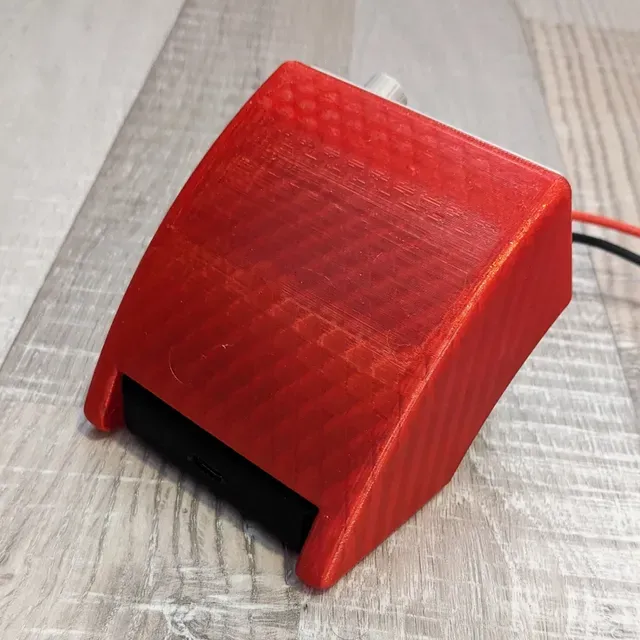

1 dps_case or dps_case_air Main body. Use air version if extra airflow is required. For low power applications (< 50W) this should not be necessary.

1 dps_front or dps_front_switch Housing for the banana socket and a switch for the switch version. 2 M3 inserts are needed for this part

1 dps_back Housing for the ZY12PDN USB-C board. 2 M3 inserts are needed for this part. The dps_clip is used to keep the board in place.

1 dps_clip Use M2 screw to mount to dps_back

1 dps_gridfinity Base to store power supply

Other Parts:

Pcs Part Order

1 RidenRK6006 Link

1 ZY12PDN USB-C board including header Link

1 Banana sockets set Link

4 M3 insert

4 M3x10mm flat head screw

2 M2x6mm socket head screw

4 Wire and ferrules (10 cm)
