CR-10 RPI Camera Mount

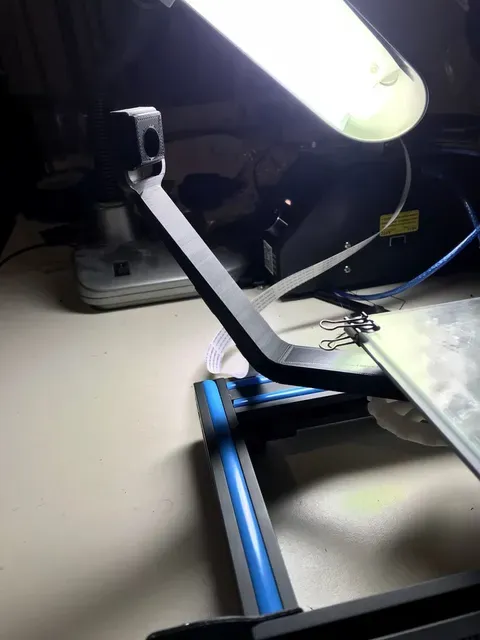

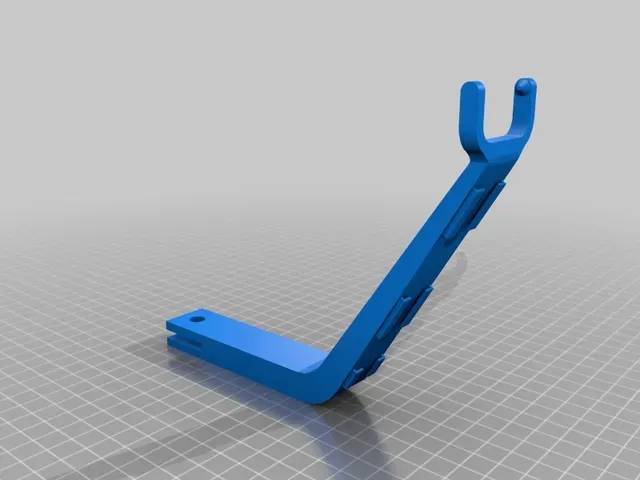

Raspberry pi camera v2 mount for Creality CR-10 that mounts from the bed. Combined and modified the arm from the CR-10 webcam mount with the pivot head and case from the Taz 6 pi camera mount. Added flex cable holders at the back of the arm as in Taz 6 pi camera mount. Updated the back of the case to suit raspberry pi camera v2, as the original back of the case did not meet the footprint of the rpi camera exactly and was having fit issues.

I printed mine oriented upright, without support. Some people have also succesfully printed it with a small amount of support coming from directly underneath the swivel arms. You shouldn't need any more than that for this print.

To install, unscrew the bed levelling screw and remove it and the spring from the base plate. Fit the mount over the base plate, position the spring, and screw the bed levelling screw back in.

Some people have mentioned having issues with the arms that hold the camera breaking when installing the camera, so I'd suggest being a little careful during assembly of the mount.

Print Settings

Printer:

Creality CR-10

Rafts: No

Supports:

No

Resolution: 0.2mm

Infill:

20%

Notes:

PLA+ 210degC nozzle, 70degC bed
