Nail Polish Magnet Holder

Model details

Platform
Printables
Price
Free
License
CC-BY
Print, modify and use commercially — credit the author.
Formats
STLSTEP
  • 37 Likes
  • 113 Downloads
  • 0 Makes
  • 0 Comments
  • 1 944 Views

Author:Duckferd

Published

Description

Magnet holder used for magnetic nail polish in 2 styles (cat-eye and velvet/crystal). The holder is designed to reuse bar magnets that come in the standard magnetic wand- specifically the ones provided by Mooncat, as well as others that are approximately 22X9X4mm. Retains the magnets but allows them to be popped out when needed. A step file is included if you want to modify the sizing for your specific magnet, and if there are enough requests I can make different variants for different magnet sizes.

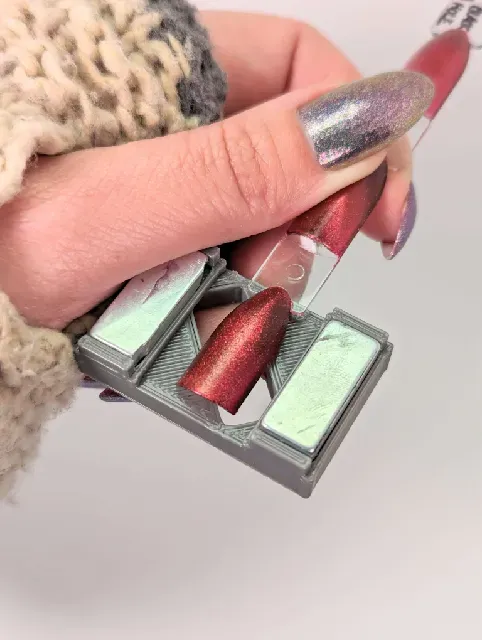

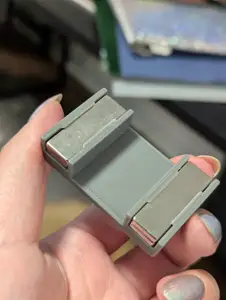

For the velvet/crystal look: Insert 2 magnets , one on either side (with the magnets oriented to attract each other) in the side slots.

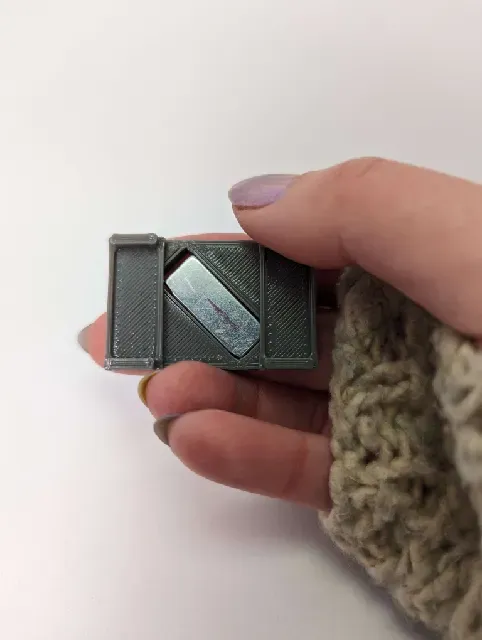

For the cat eye look: insert 1 magnet in the center slot. This can be inserted at an angle and then popped into place.

No special print settings required. I used PLA, 0.28mm height and 0.6mm line width, which seems to work well.
