SKR 1.4 turbo case with source files

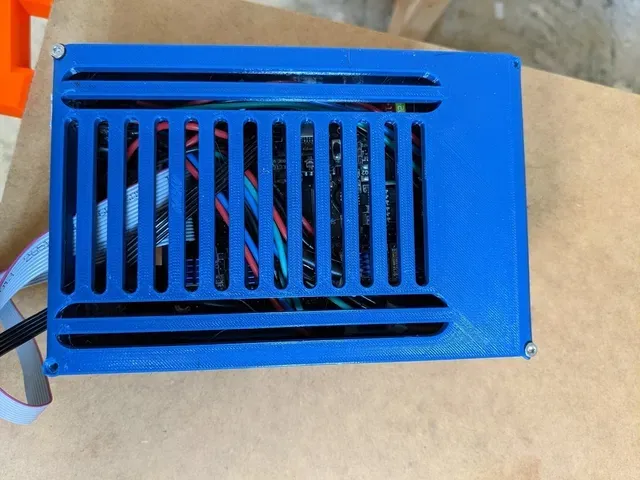

This a case I designed for the MPCNC lowrider 2. It has four 1in pipe clamps that screws into the bottom of the case. there are holes for JST and xt60 connecters .You can use the case normally just remove the pipe clamps. source files included. I have spent countless hours designing this model and would highly appreciate if you left a tip.

fasteners: (optional) 4 m5 x 20mm for pipe clamps and angle mount, 4 m3 x 10mm 4 m3 x15mm

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

No

Supports:

No

Resolution:

0.3mm

Infill:

15

Filament:

Overture PETG ](http://www.amazon.com/s?url=search-alias&field-keywords=Overture+PETG&tag=thingiverse09-20) Blue

Notes:

none of the model need supports.

Post-Printing

assembly

1.(optional)Crimp 4 pin and 3pin JST connecters and glue them in place.

2. (optional) If you want to attach the case to the pipe. screw the pipe clamps in with m5 x 20mm screws they will cut there own thread. 2. Use the m3 x 10mm to screw the board into the case.

- connect all the the wire and display now. 5.Use the m3 x 15mm to screw the top onto the main body of the case. - line up the clamps and push down and they should snap on. It does require a lot of force. You can tighten the clamp with a bolt and not through the clamp. -  (or) use the angle mount. line the mount up on the angle and screw it in.
