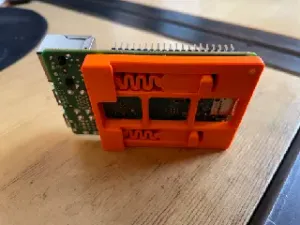

Low-profile DIN Rail Bracket for Raspberry Pi, SKR Pico, and BTT Pi 1.2.
Low-profile DIN Rail Bracket for Raspberry Pi, SKR Pico, and BTT Pi 1.2. — Image 2 of 5
Low-profile DIN Rail Bracket for Raspberry Pi, SKR Pico, and BTT Pi 1.2. — Image 3 of 5
Low-profile DIN Rail Bracket for Raspberry Pi, SKR Pico, and BTT Pi 1.2. — Image 4 of 5
Low-profile DIN Rail Bracket for Raspberry Pi, SKR Pico, and BTT Pi 1.2. — Image 5 of 5
3D model · Printables

Low-profile DIN Rail Bracket for Raspberry Pi, SKR Pico, and BTT Pi 1.2.

Model details

Platform
Printables
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
3MFSTEP
  • 221 Likes
  • 1 530 Downloads
  • 8 Makes
  • 11 Comments
  • 6 415 Views

Author:tn00364361

Published

Download on Printables

Description

The mounting holes for the BTT Pi 1.2 are measured directly from the STEP file in BTT's GitHub repository, as they differ slightly from a regular Raspberry Pi.

To mount the boards, you will need:

- four M2.5x8 screws (or M2.5x4 when using threaded standoffs) - four M2.5 nuts - four standoffs or spacers with at least 2mm in height (or 1mm for the Pi Zero) You must use standoffs or spacers to separate the bracket and the board. Otherwise you might damage the SMD components on the back side of the board when the spring is moving.

The antenna of the BTT Pi 1.2 can be attached to the flat part of the bracket.

If you route the antenna wire between the BTT Pi and the bracket (like what I have in the picture) be sure that the wire is not pinched or stressed.

Tags

raspberrypidinrailvoronbttskrpico
