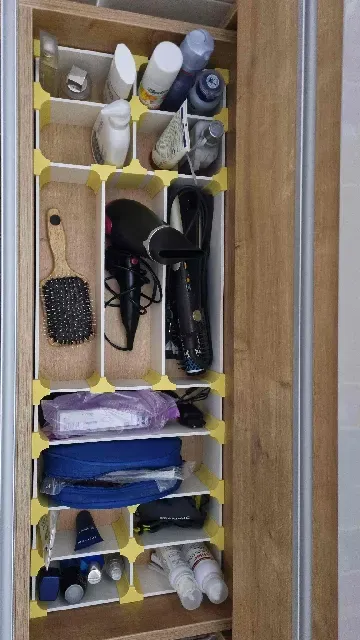

Drawer organizer

Parts for creating variable partitions in the drawer. Height of partitions 6, 10 or 14 cm.

Update: 2.2.2024

I created 4 more parts, so now there are 7 in total:

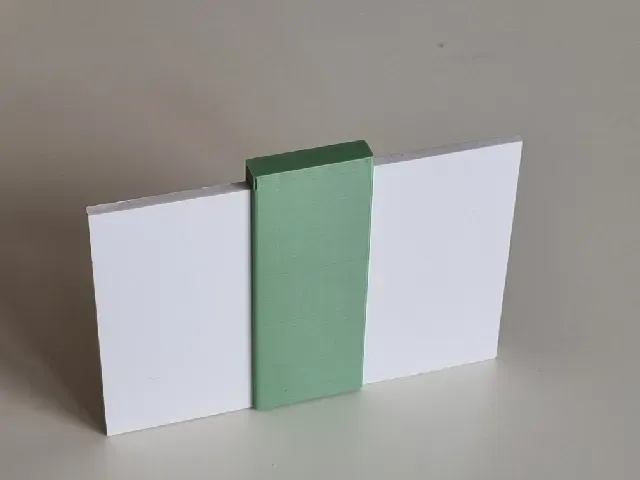

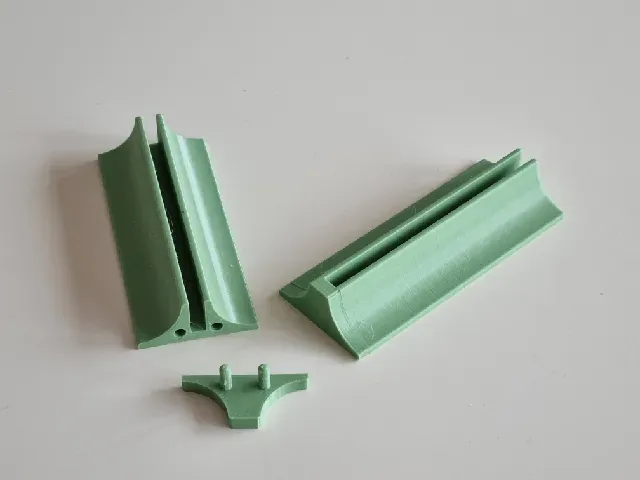

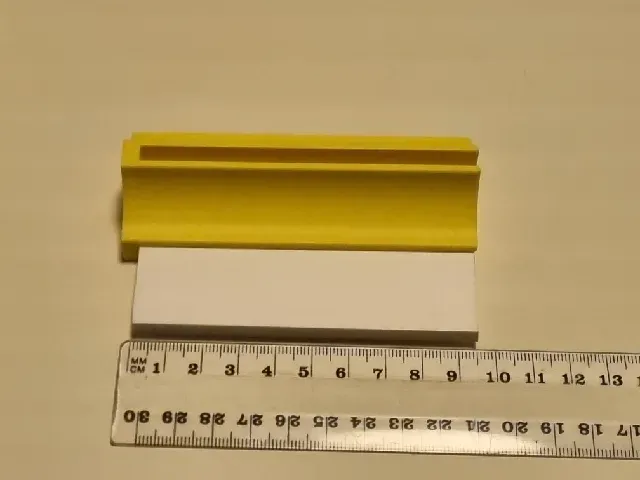

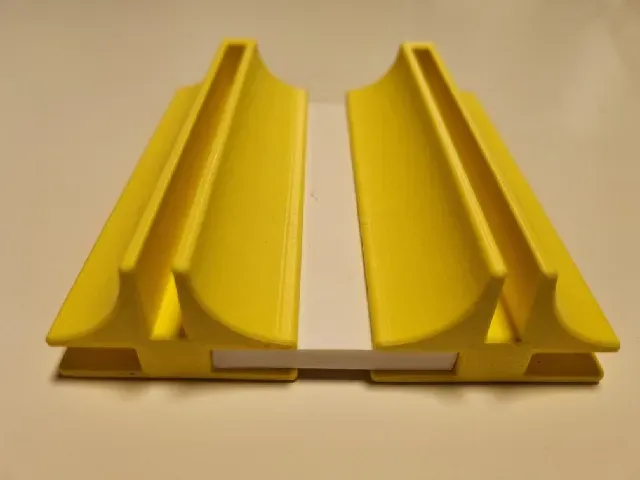

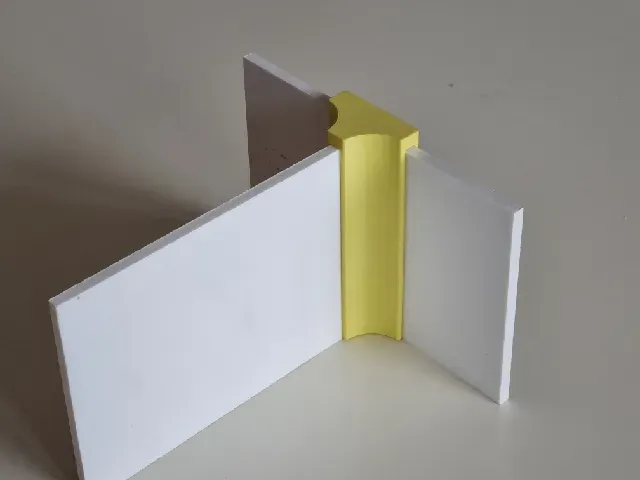

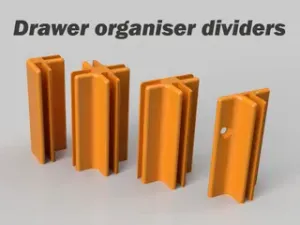

- centre - for connecting 4 sheets - edge - for connecting 3 sheets - corner - for connecting 2 sheets in a corner - straight - for connecting 2 sheets in a straight line to extend the sheet - ongoing(L/R) - for adding a bulkhead without shortening the sheet - end - for mounting the sheet in the edge with duct tape I use PVC material for the sheets, because it is easy to work with, but plywood and other 5mm materials can also be used.

Printing:

- No support - Nozzle: 0.4 - Layer: 0.2 I've added the source files for Autodesk Fusion, for the ability to edit the dimensions.
