Parametric Clearance Gauge
Model details
- Platform
Printables
- Price
- Free
- License
- CC-BY-NC-SA
- Non-commercial use only, with credit; share remixes under the same license.
- Formats
- 3MFF3D
- 11 Likes
- 162 Downloads
- 1 Makes
- 1 Comments
- 696 Views
Description
I wanted to do a clearance test for some time now. I couldn't find a design with the values or intervals I wanted, so I made my own.
I first saw this kind of design years ago in Maker's Muse video, it's avalible here: https://www.makersmuse.com/clearance-and-tolerance-3d-printer-gauge

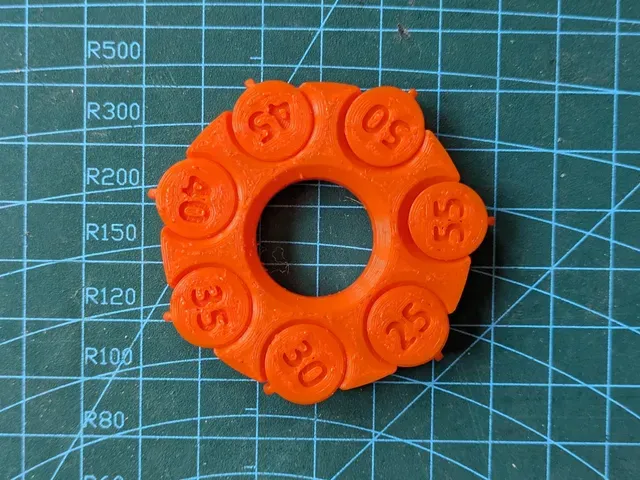

I wanted to be flexible in terms of gap range and intervals, so I made it parametric. It uses ParametricText add-in to allow for auto adjusting labels, so the only parameters you should change are “base” and “step”. By default it starts with 0.25mm, and increases by 0.05mm up to 0.55mm.
It takes around 11g of filament. Print with no supports or brim.
link to ParametricText add-in: https://apps.autodesk.com/FUSION/en/Detail/Index?id=2114937992453312456&os=Win64&appLang=en
