Description

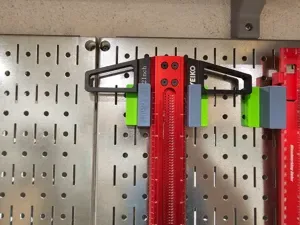

This uses the DDD Printable Wall Control System ( github ) to mount the rulers.

Here are the rulers that I'm mounting - they are about 3.7mm thick, 25mm wide, and the rule stops are about 12mm thick.

The sidepieces to connect to the board are the Left and Right 2x3 L-Brackets. I'd recommend using the locking spacers facing the wall mount, the 2x4 will be perfect. These can be used to lock in the mount using the threaded pin .

If you have another similar ruler + rule stop that you'd like to mount, contact me with dimensions and I can probably make a version for you.
