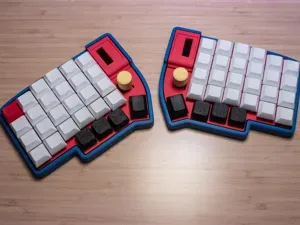

Aurora Lily58 MX Style switch case

I created for my Aurora Lily58 PCB Kit with MX switched from splitkb.com thie case. I used for the Oleds this Model: Aurora Lily58 Oled Housing

PCB Hardware that I used Aurora Lily58 PCB Kit from splitkb.com with:

- RGB Underglow, - RGB Backlight - Oleds - MX Hotswap sockes Microcontrollers:

- Liatris Microcontroller for the RGB version - Elite-Pi Microcontroller for the non RGB version Case hardware Aurora Lily58 Low Profile Case from splitkb.com :

- Oled Covers - Top Plate / BlackFR4 - Aurora Low Profile Case Hardware Kit - Here the M2x6mm screws and M2x8mm spacers As switches I used Cherry MX Red Switches

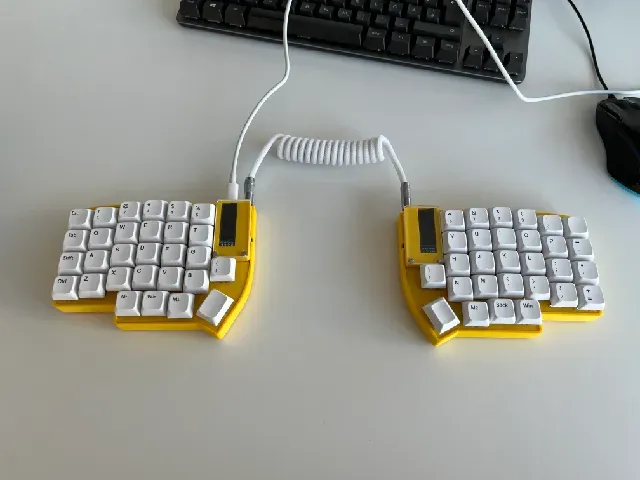

On my yellow non RGB Aurora Lily58 I use Xdal dsa keycaps from Aliexpress.

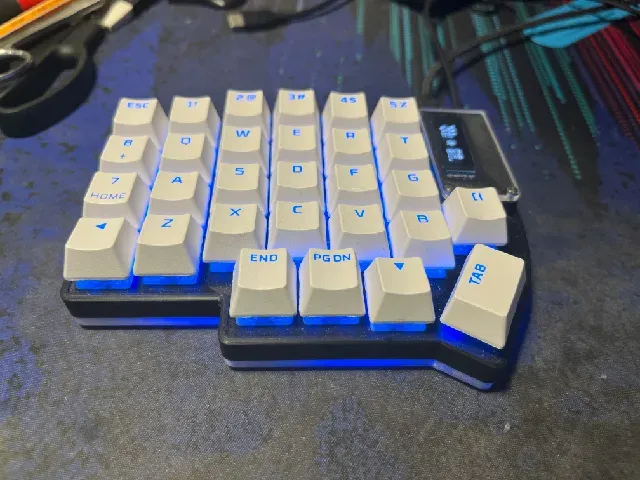

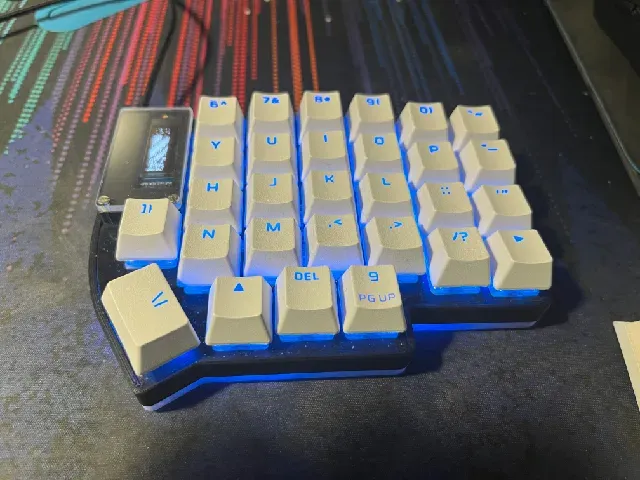

On the RGB version I use HyperX PBT Keycaps form Amazon.

As I didn't like the QMK only precompiled firmware from splitkb.com which made on the fly keymap changes hard I created a VILA keymap / firmware for it which you can find on my github https://github.com/Gabbajoe/vial-qmk/tree/splitkb_lily58 in the folder keyboards/splitkb/aurora/lily58/keymaps/vial or vial-liatris where I disabled the power led of the microcontroller.

In VIAL I enabled all features
