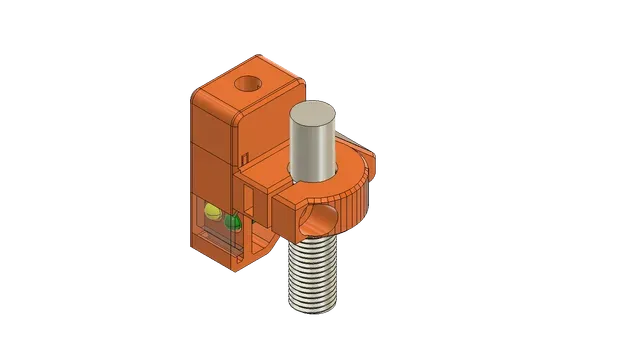

Extruder Idler MMU2S Adjustable With Screw Adj. Housing with Power LED and State LED and MMU2s Filament Sensor

Model details

Platform
Printables
Price
Free
License
CC-BY
Print, modify and use commercially — credit the author.
Formats
STL3MFGCODE
  • 20 Likes
  • 61 Downloads
  • 2 Makes
  • 3 Comments
  • 1 494 Views

Author:fhartmann

Published

Download on Printables

Description

Preview:

At the moment I am working on a version that lights up a bit brighter. As soon I got the values I`ll post it.

Description:

It is a combination of several Persons and remixed for my need:

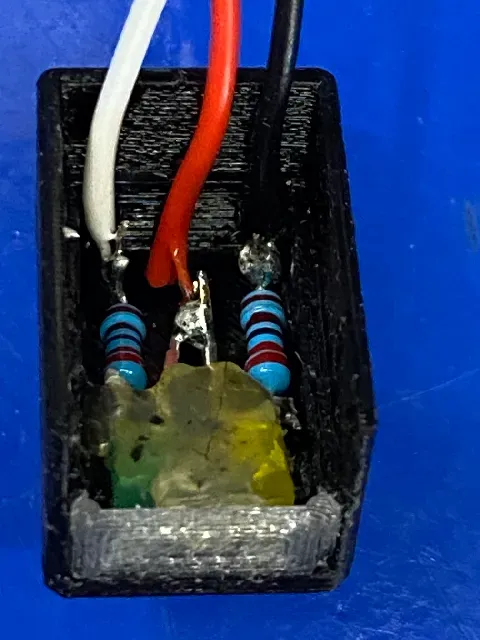

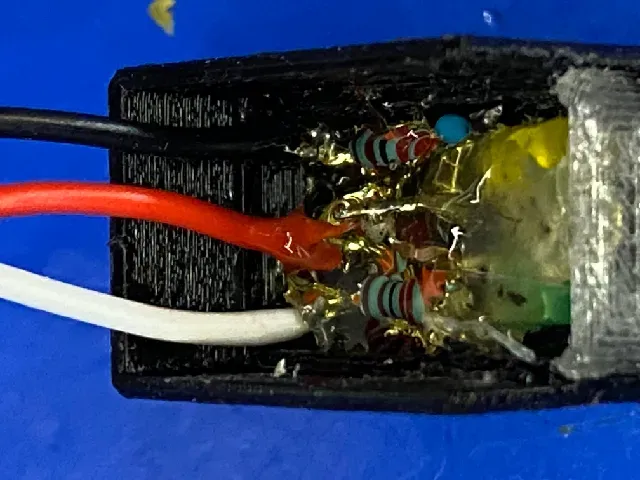

Used 3mm Green and Yellow LED with 2mAmps nominal Current, used for each LED 2.2kOhm Resistor. I didn`t want to weld smd. Thats just not my thing….

I glued in with fast glue the transparent Window.

used Hot glue to fix the LED and Resistor. Filled the Housing and afterward with fast glue the Frame. Same for the MMU2 Housing

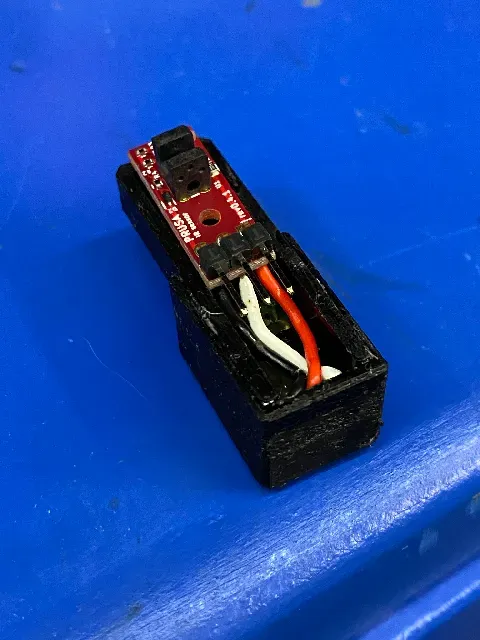

used Original Bolt to fix the assembled Filament Sensor Cover on his original place.

MMU unit is Fasten with same Bolt / Nut Combination then MMU2 Idler

MMU2 Connection:

MMU2 Connection is different then Filament sensor. Connect Power supply of Green LED to Gnd instead to +5V Then state of Sensor is same as the Filament Sensor.
