Vaporesso Xros Pro & Xros 3 Series - Drip Tip

Vaporesso XROS 3 Series Drip Tip

This is a remix of a model made by CHAOSXSPIRIT that can be found here.

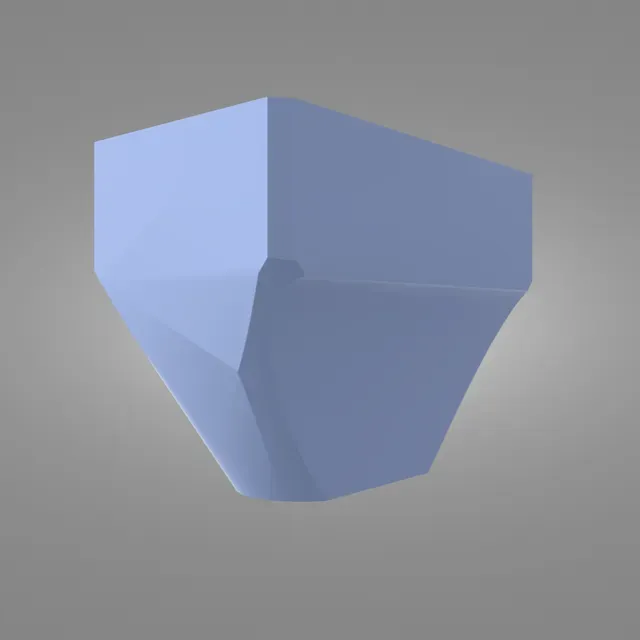

I have changed the drip tips design by making it smaller so it prints faster, is more comfortable, and uses less filament.

I have also made the inner diameter of the airflow hole smaller so it now gives a nice smooth drag as there seemed to be issues with the Xros's airflow sensor not detecting when you take a drag.

Print Settings.

STL is in the correct orientation for printing (Mouth Piece Down)

- .2mm layer lines with a .4mm nozzle. - Brim to make sure it sticks to the bed. - 2 perimeters. - Infill 5%-15%. I Printed on Ender 3 S1 with these settings and it came out perfect!

Once printed it should be a tight fit, just push it on the pod and it should be very secure.
