Raspberry Pi 4 case with 2020 extrusion mount and integrated LM2596

Model details

Platform
Printables
Price
Free
License
CC-BY-SA
Print, modify and sell with credit; share remixes under the same license.
Formats
STL
  • 14 Likes
  • 136 Downloads
  • 2 Makes
  • 2 Comments
  • 907 Views

Author:KoldKompot

Published

Download on Printables

Description

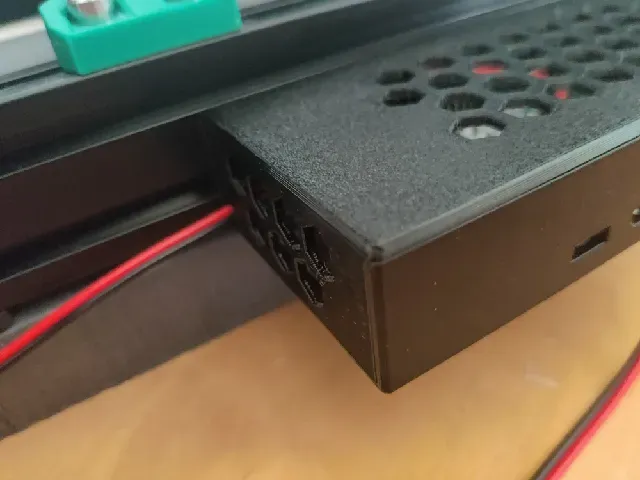

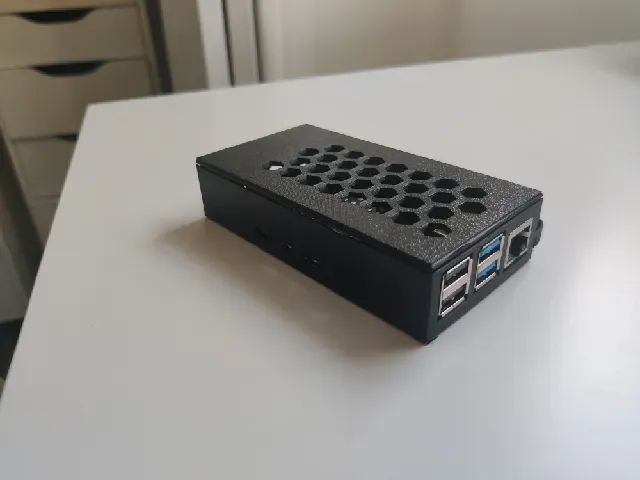

A Raspberry Pi 4 case with space for an LM2596 buck converter. This is useful when you want a one cable solution to power your printer when using Klipper/Octoprint. This case also includes a extrusion profile to be mounted directly to the printer frame. Make sure to follow the Pi 4 pinout (the pi can be powered via a 5v and ground pin on the gpio pins) and precisely regulate the buck converter to 5v or else damage will occur.

The extrusion mount fits snuggly on the extrusions I am using (not the V type) from zylTech but I am willing to make a V slot version as well if somebody needs it.

Use M3x8 screws for the Buck converter holes and M2.5X8 for the Pi 4 holes. (lenght might not be critical here as long as they are long enough)
