supermicro 3,5" hdd drive caddy tray (Non-Screw and Screw version!)

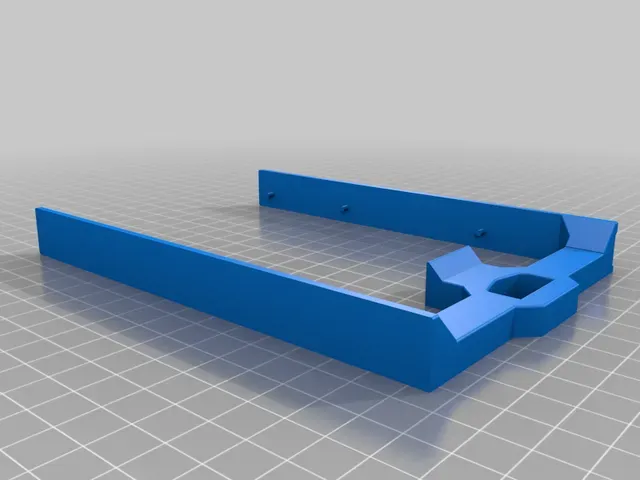

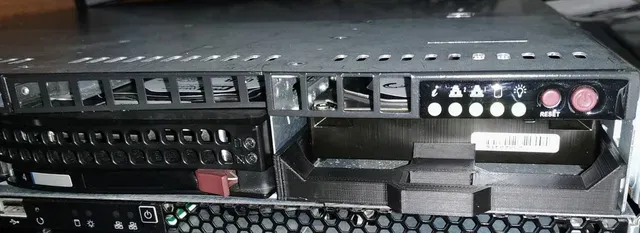

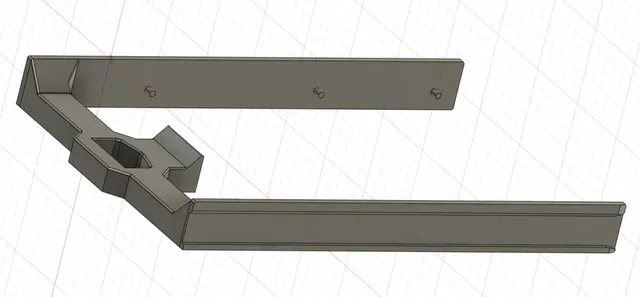

For the famous (and nowaday super cheap second hand) Supermicro CSE-815 1U server chassis, I designed a harddisk caddy (hard drive tray) for 3,5 SATA/SAS HDDs.

I liked the idea of https://www.thingiverse.com/thing:2413043 , but build these on my own, by using an original HDD MCP-220-00001 drive tray and made it to be printed out fast and (nearly) without supports.

There are two versions available:

One without the need of the special supermicro hdd screws ( MCP-410-00006-0N ). You can just clip it on your harddrive and be good to go.

And one where you can securely fix the hard drive tray to your HDD.

This print should be an exchange for following supermicro hdd caddies:

MCP-220-00001-01

MCP-220-00024-0B

MCP-220-00075-0B

01-SC93301-XX00C104

Which means, this caddy should be compatible with following supermicro 1U server chassis:

CSE-813MFTQ

CSE-813MFTQC

CSE-813MTQ

CSE-813LT

CSE-815T

CSE-815TQ

CSE-819TQ

CSE-825TQ

CSE-826A

CSE-826BA

CSE-836BA

CSE-826BE1C

CSE-826BE26

CSE-826BE16

CSE-826E16

CSE-826E1

CSE-826BE16

CSE-826BE1C

CSE-826E2

CSE-826E2

CSE-826E26

CSE-828TQ

CSE-836BHE16

CSE-836BE16

CSE-842XTQ

CSE-846E1

CSE-846E1

CSE-847A

CSE-847E1C
