Louqe Ghost S1 Vertical Stand

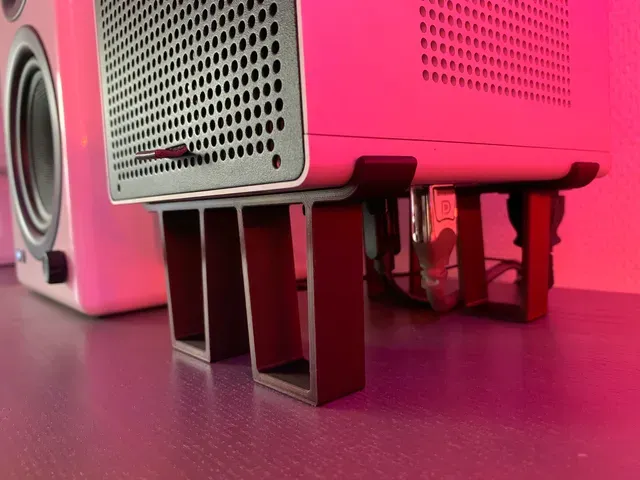

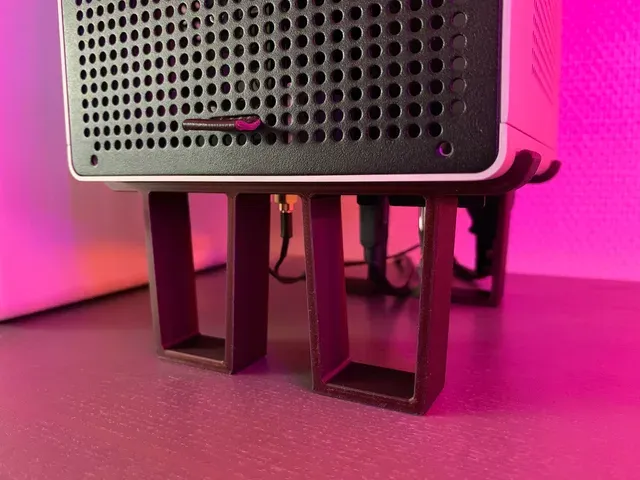

A vertical stand for the Louqe Ghost S1 small form factor computer case. Should work with any case version, any top hat, both orientations. It's designed based on official 3D case model.

Included are several versions, which differ by leg height, width and angle. The 60mm tall one works fine with my straight (non-angled) power, DisplayPort and USB cables. If you use angled cables, you could probably get away with shorter legs. If you have an IO Shield that sticks out of the case, there is also a version that accommodates.

Also included is the Fusion360 f3d file, which you can use to make modifications. The part is designed in a parametric way, which means that in Fusion you can go to Design > Modify > Change Parameters, fiddle with settings such as leg height, angle and width, thickness, chamfer etc. and the part will automatically update based on the new settings.

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

No

Supports:

No

Resolution:

Any

Category: Computer
