Raspberry Pi 3 B plus snap case ( RasPi B+ / 2 / 3 / 3 B+ )

UPDATE 2018.09.30:

-Side panel GPIO updated: GPIO cut-out updated for a better snapping performance of side panel (see stl file geometry view, pictures show old version)

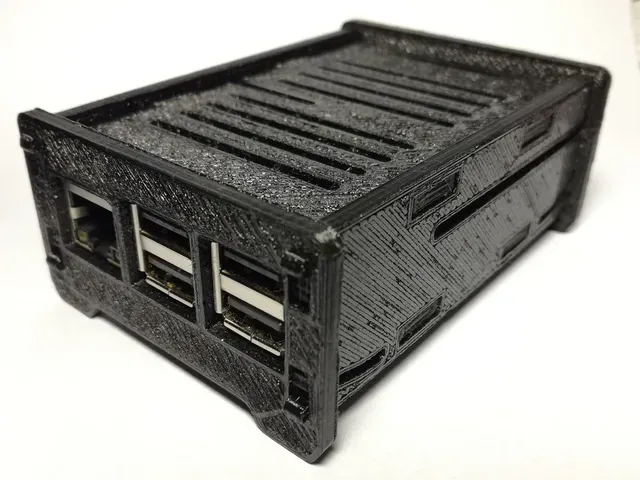

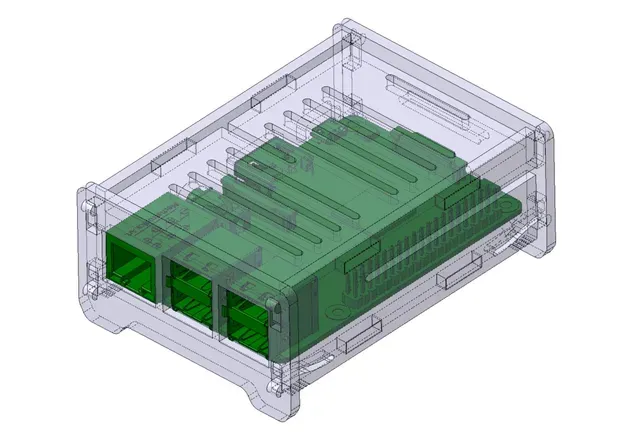

A simple case for Raspberry Pi 3. Might also fit the RasPi 2 and B+. No screws or glue needed, just snap the panels together.

Inspired by several acrylic cases available on the internet. Design should be suitable for CNC-cuting.

Please share your makes.

Print Settings

Rafts:

Doesn't Matter

Supports: Doesn't Matter

Resolution:

0.2

Infill: 20%

Notes:

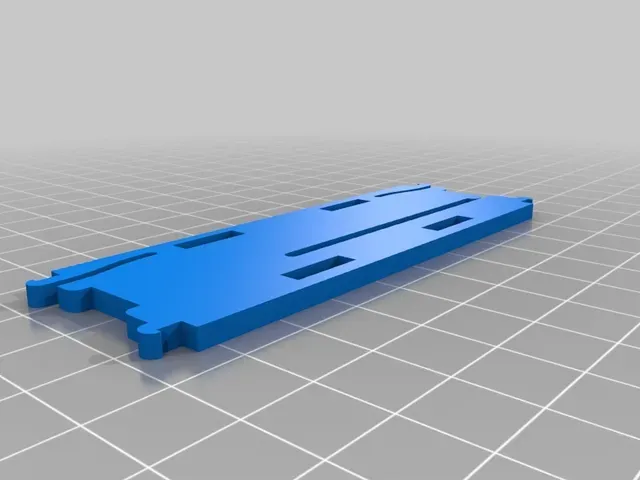

Place panels flat on printbed for printing.

Post-Printing

Assemble instructions:

- Place RasPi on top of bottom panel. The cut out in the bottom panel is for SD-card slott accessibility.

- Put top panel on top RasPi. Ensure the short slots to be positioned over flat cable connectors. (The long slots are for ventilation only)

- Assemble side panels

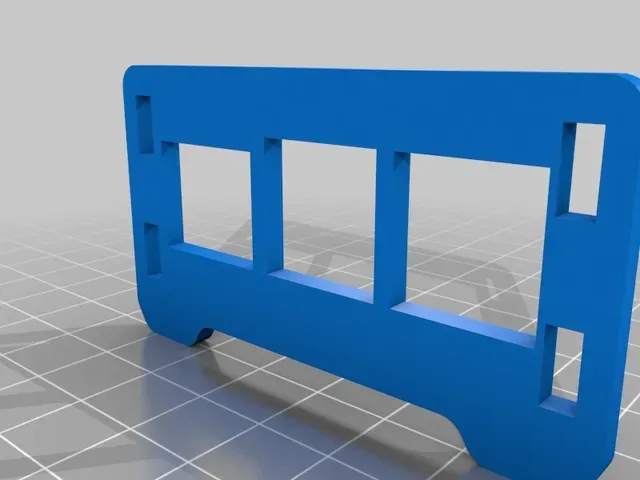

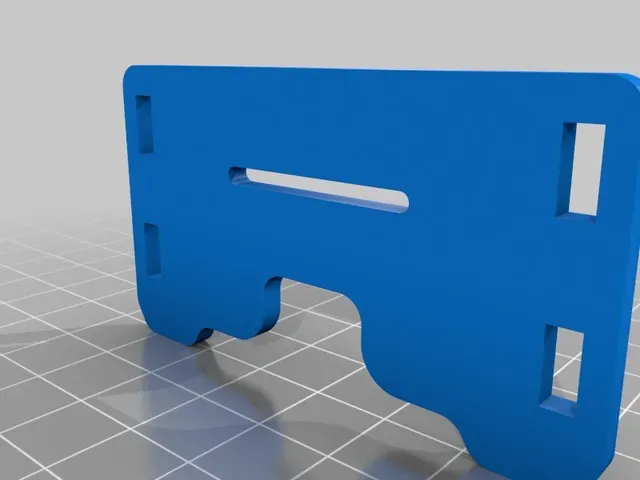

- Assemble front and back panel by hooking in on top and by pressing down the flexible bottom hooks on side panels, slide front and back panels in place. Start with the back planel. Complete case by adding front panel.

How I Designed This

Thanks to Mechatronics Art for providing the 3D-model of the Raspberry Pi, which was the the basis fo rmy design.
