RepRap Prusa i3 X and Z Carriage with Delrin Nut Support

Make sure you mirror these parts if you have your x drive motor on the left of your printer. If you print these parts without mirroring them you'll end up with the motor on the right side which might get in the way of your electronics. And then you'll have to print them all over again!

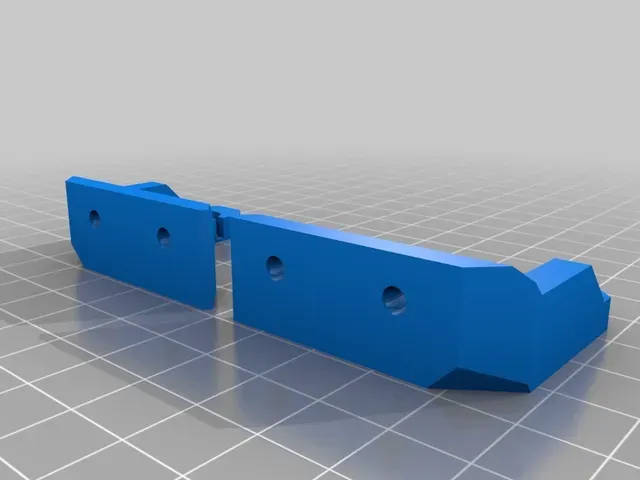

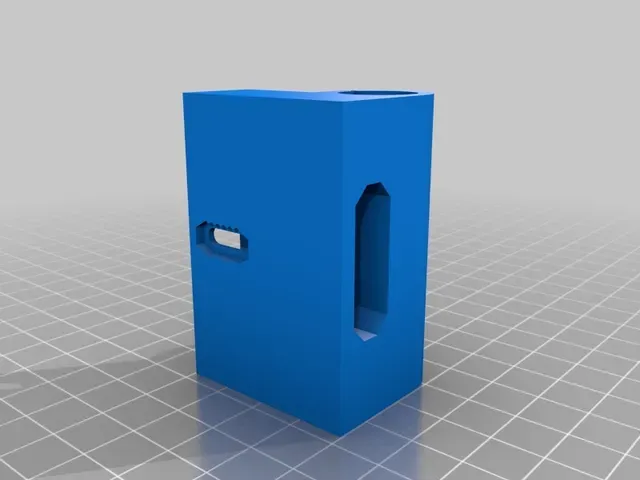

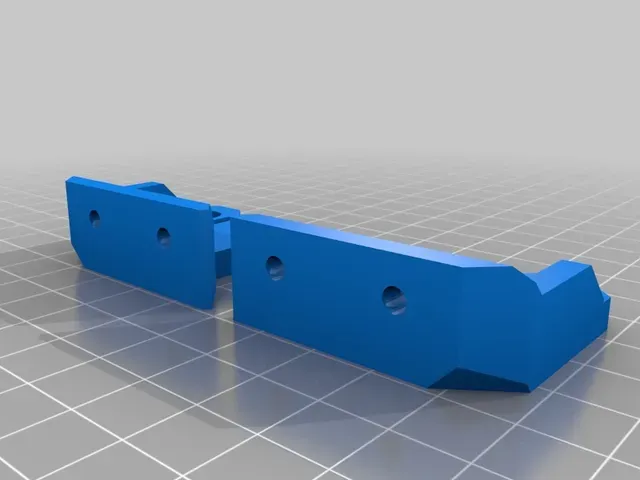

This is my X/Z Carriage design for my RepRap Prusa i3. It's originally based off the vanilla Prusa i3 parts designed by Josef Prusa (You can find those files on his GitHub) but I enclosed the motor end and added support for delrin nuts for proper z axis lead screws (tr8x8) (4 screw type).

The (Z_Bottom.stl) parts are original files from Josef Prusa but I included them to make it easier since they go with the top mounts.

(22/05/16) Made stuff a bit better and added z top and z bottom parts.

(24/05/16) Fixed holes for delrin nut.
