Milwaukee Packout Deep Organizer Compatible Bins - Full Height - No Dividers

EDIT: Here are the Half-Height Bins .

EDIT2: It took a lot longer than I anticipated, but. . . Here are the full height divided bins.

Since I have already duplicated the: Milwaukee Packout Low Profile Organizer bins and the Packout Organizer Square bin and the Packout Organizer Rectangular bin .

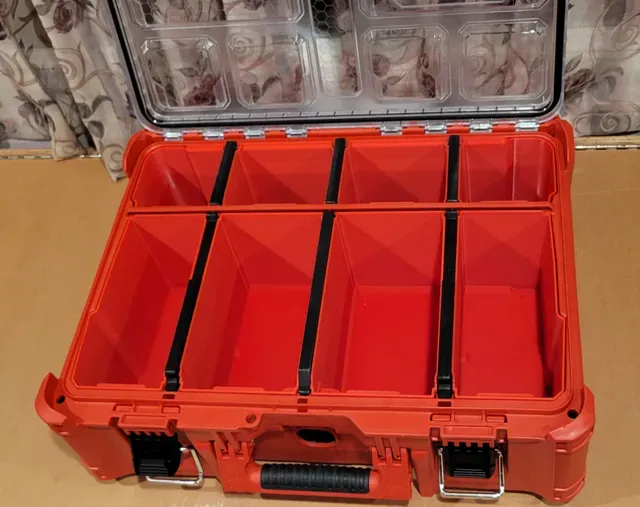

I was asked to create bins for the Milwaukee Packout Deep Organizer (Model # 48-22-8432). I figured, why not, so I gave it a shot.

These were definitely more of a challenge than just duplicating the other Milwaukee Packout Organizer bins. There were no bins to duplicate, and the bins that I saw online did not conform to the sides of the individual cavities, but just squared off the inside shape and a lot of the available volume was lost. I figured I would try to make available for storage as much of the internal volume as possible, which led to the "fun" of the design - replicating and offsetting all of the curves, angles and drafts of the case.

Well, some of the designs took a lot more iterations than I thought they would, but here they are.

The walls are designed to be 0.08" (2.03mm) thick, and the bottom is 0.12" (3.05mm) thick.

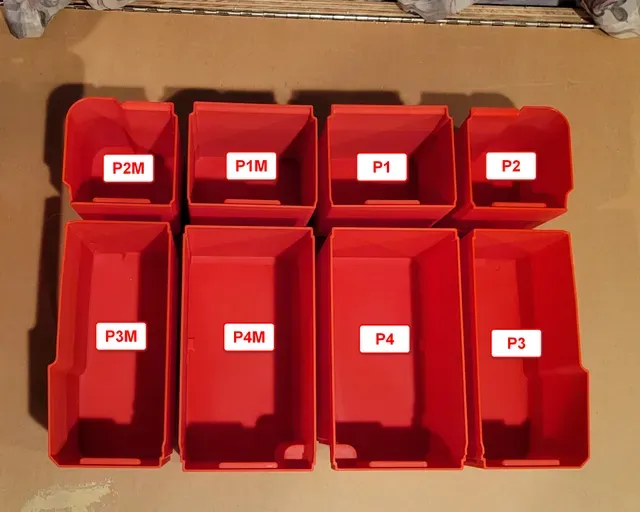

The "M" designator just means it is a mirrored part, since I only designed the right side bins.

The "FH" stands for full height bin, since I was also asked to make variations of these that are 1/2 height, and maybe 1/3 height as well.

The "ND" standa for no dividers. I may also make these in the different heights to have removable dividers. At this point, I am not sure how many dividers, but they will unfortunately have to be unique to each bin, since each cavity has different dimensions.

The "--?" indicates the iteration of that model. For "--C", it is the fourth iteration, since I start at ---, then --A, --B, --C. . .
