Modified Frontpanel for BLV MGN Cube

Model details

Platform
Printables
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
STL
  • 1 Likes
  • 14 Downloads
  • 0 Makes
  • 0 Comments
  • 281 Views

Author:StefanWoX

Published

Download on Printables

Description

This is a remix of the BLV MGN Cube front panel.

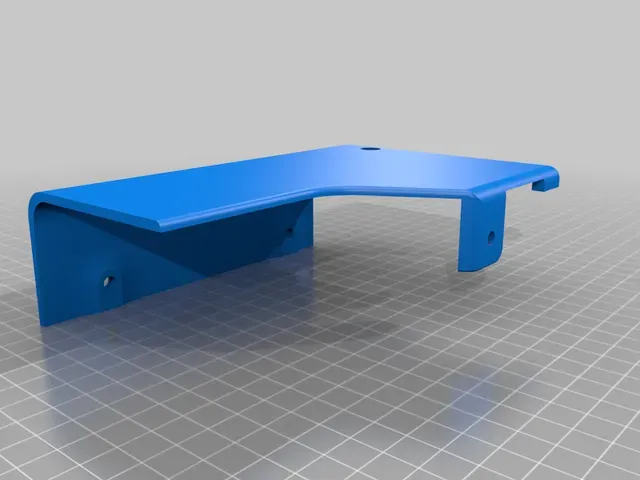

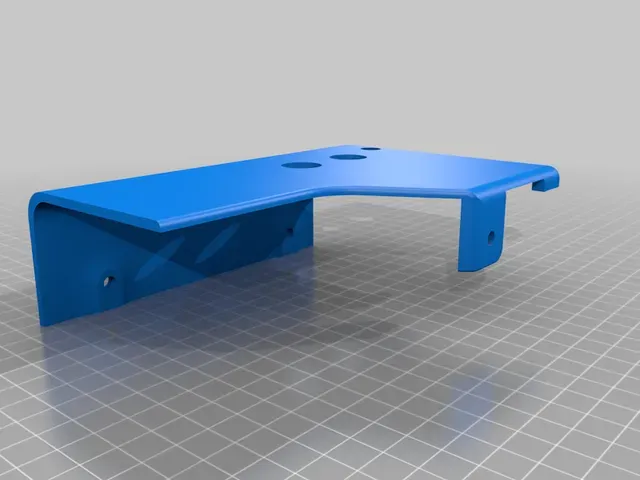

Since my old printer wasnt big enough to print the original Panel, and i dont want to use the Neopixel Rings i modified the original Panel. There are 2 right panels one with 2 16mm and one without holes for 2 switches.

Changes:

smaller - it doesnt cover the whole 2040 extrusion - just the inner part (see photo)

removed holes for the Neopixel rings

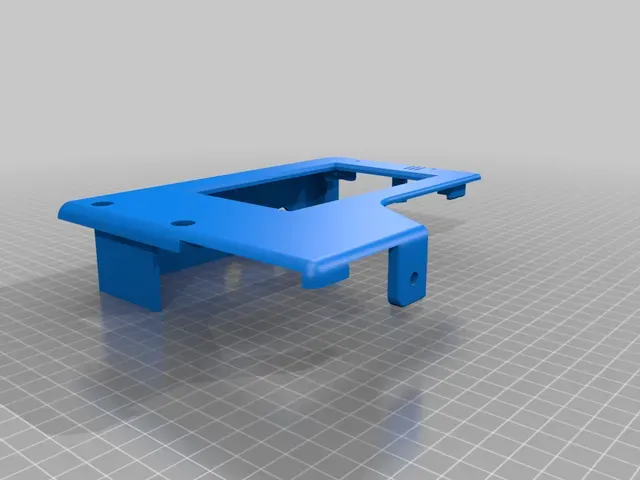

changed the socket for the Paneldue for the PanelDue 5i from FYSETC

Compatibel with this set: https://s.click.aliexpress.com/e/\_d9bA9S9 / Panel: https://s.click.aliexpress.com/e/\_d8Nndjn

I use this 16mm self reset momentary switches: https://s.click.aliexpress.com/e/\_d65CZC9

Print Settings

Printer Brand:

Anycubic

Printer: All-metal Mega

Rafts:

No

Supports: No

Infill:

20%

Filament: Doesnt matter - I use DevilDesign PLA or PETG is enough what you like

Category: 3D Printer Parts
