Intel NUC 100mm and 75mm VESA Mount

Model details

Platform
Printables
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
STL
  • 34 Likes
  • 394 Downloads
  • 2 Makes
  • 5 Comments
  • 2 031 Views

Author:Evolved Origins

Published

Download on Printables

Description

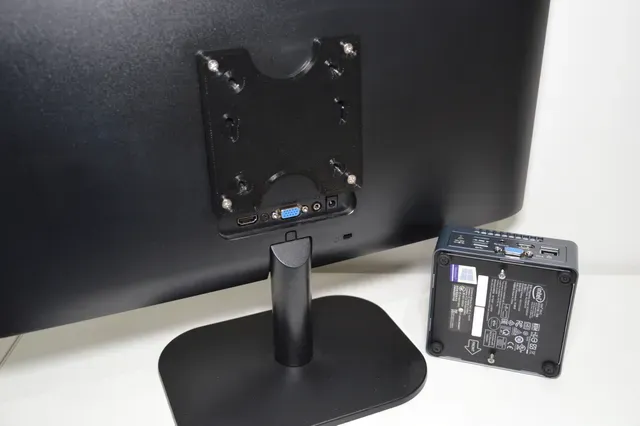

Lost the original VESA mount for the NUC mini PC and didn't want to wait for a new mount to be shipped. Also my monitor (AOC 22B2H) has a curved back which means that I cannot use the supplied screws from Intel and I'd have to use spacers if purchasing longer M4 screws. The 3D printed mount will conform to the back of monitor curvature if printed in PETG.

Required screws:

- 2 x M3 round/pan head 10mm with head diameter maximum of 6.5mm and head height maximum of 3mm - 4 x M4 countersunk 16mm (measured from top of the head); 6mm for the mount, 10mm M4 thread depth in monitor. Please double check the thread depth first and calculate the required length of screw if not 10mm thread depth. Printing

- PETG - 50% cubic infill - 5 walls on a 0.6mm nozzle - 4 top and 4 bottom layers - No support, print with countersunk holes facing print bed
