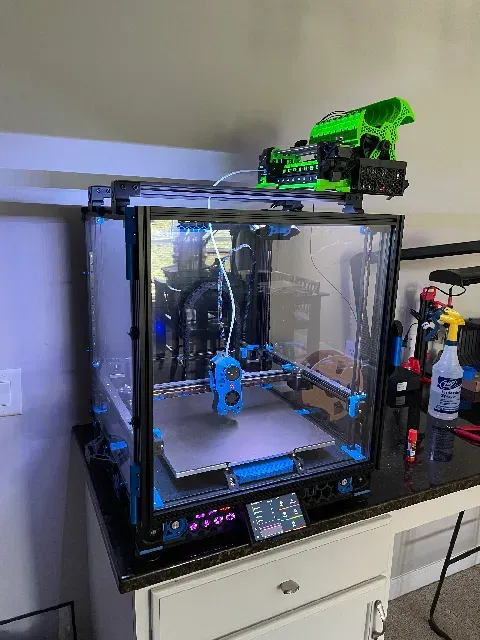

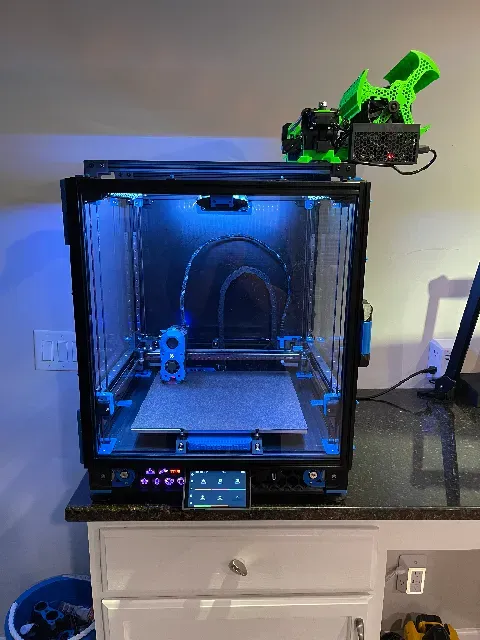

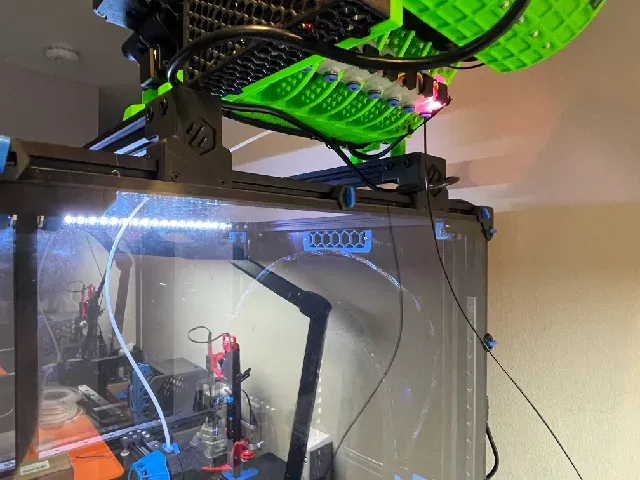

I couldn't find any 2040 extrusion brackets for the top of my Voron 2.4 350mm. The ERCF v2 has a 20mm offset of it's legs on the right side of the unit. Also have a 2020 extrusion version to match. Voron logo on the sides.

These brackets can be used with your 3mm top panel installed.

For you ERCF v2 users length of your PTFE tube to the ECAS on your printhead is about 650mm or 700mm with your panel installed for a 350mm Voron 2.4

BOM (per bracket)

- M5 T-Nut (x5) - M5x8mm BHCS (x5) - M3 T-nut (x2) - M3x8mm BHCS (x2)

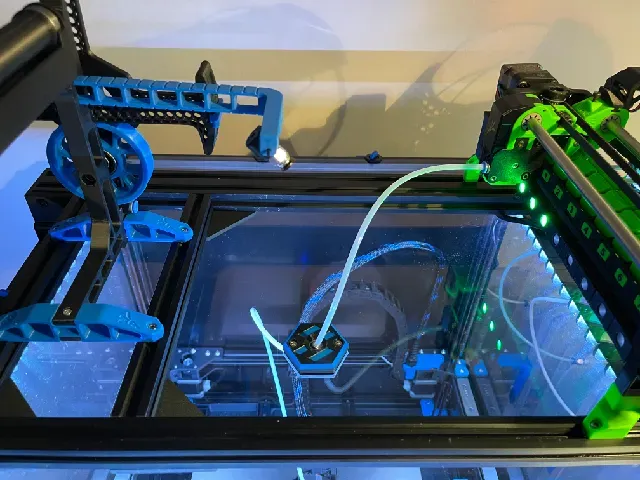

If you want the PTFE passthrough like I have in the picture, see Mark Norris's excellent passthrough that utilizes a GE4C spherical bearing
