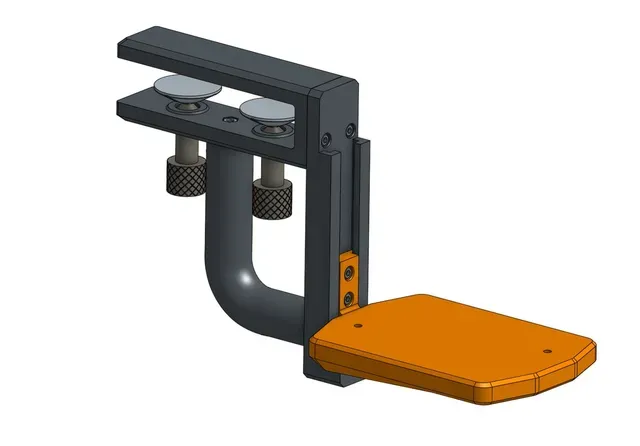

Thrustmaster T16000M HOTAS Desk Mount

Desk mount for a Thrustmaster T16000M HOTAS. This design will lock the mount in a forward position, so it's best placed either in front of you, or closely off to the side. This assembly is not entirely customizable like other models present on here and Thingiverse. Feel free to remix them if you want to improve this design's mounting positions.

I've added STL files as well as the STEP files in case anyone wants to remix.

Please note all STEP files are in AP214 file format, so make sure your slicer / CAD software is compatible before attempting to edit.

Some hardware is needed for this assembly, all easy to come by as all parts are ANSI regulated.

Hardware:

- 6x Hex nut ¼-20 - 4x Socket Head Cap Screw ¼-20 x 1" - 2x Socket Head Cap Screw ¼-20 x 0.75" This hardware should be easy to locate at a Lowes or Home Depot. If not, McMaster-Carr will have these in stock. The hardware will complement the assembly if you get them in a black oxide or stainless steel finish.

Other Notes:

- I've provided the “Desk Mount” and “Clamp Body” in threaded and non-threaded forms. The models currently use M12 x 1.75mm threads (I like metric more, but ANSI bolts are easier to find in America). Please note which file you are slicing before printing. I've made sure to specify which file is which in case you want to edit them and put your own threads on these parts in case of interference issues or personal adjustments. - Have fun printing!
