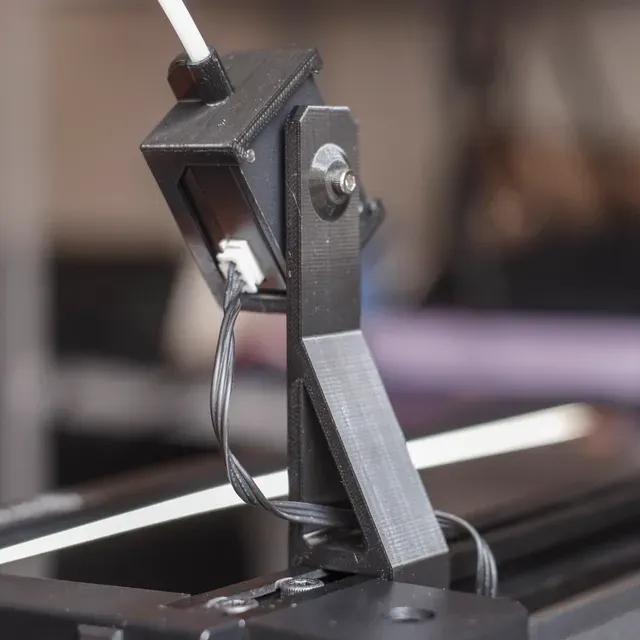

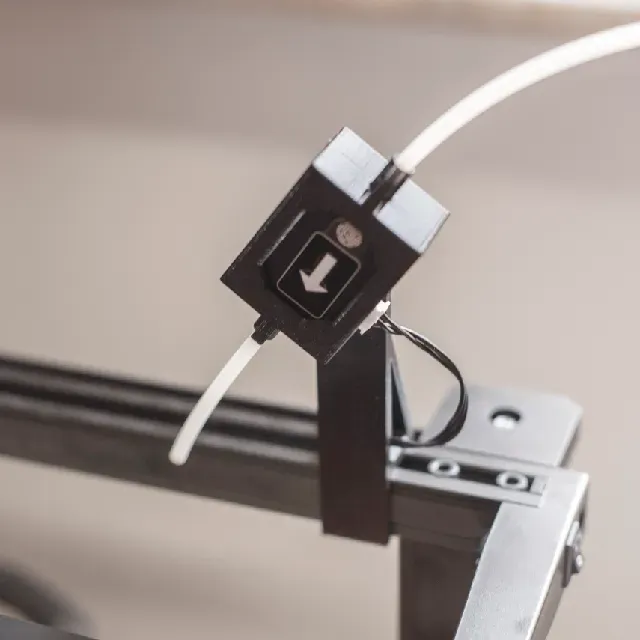

FILAMENT SENSOR GUIDE PTFE 6MM AND 4 MM- ENDER 3 S1/S1 PRO UPGRADE

Designed to be sturdy and reliable providing a good guidance and less friction to the filament.

For those how want to print directly from a filament Dryer and make a good filament guide all the way to the printer.

PTFE tube Guide Versions: 6 mm 4 mm

Diferent height and angle for your need.

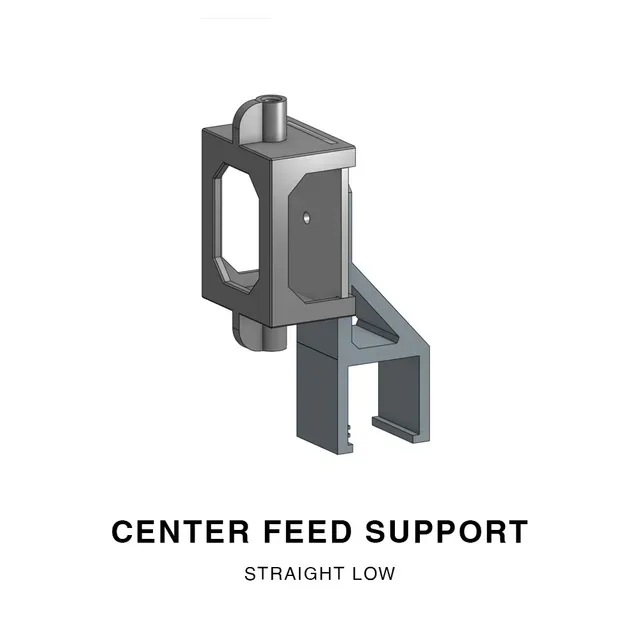

Corner Higher feed. Center Lower feed. Center Lower Angle feed.

3D PRINTING SETTINGS

Printed in PETG for that extra flex in assembling the sensor on the adapter and the support in the printer frame.

You can try other types.

No support needed

Nozzle 0.4

Layer high: 0.2

Perimeters: 2

Top/Bottom: 3

Infill: 15%

Speed: 60 mm/s

Sequential Print reduces PETG Stringing (or print one at a time).

I made it just fine on PEI and Garolite (G10) bed sheets with no brim. If you have problems with other types of bed sheets a small BRIM would avoid adehision problems.

Happy printing.
