Replacement Frame Brace for Silver or Black PSU - Prusa Mk3, Mk3S/S+, and Mk4 - 3 variations

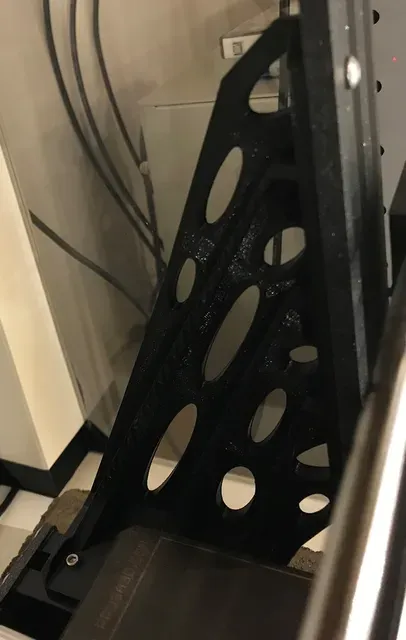

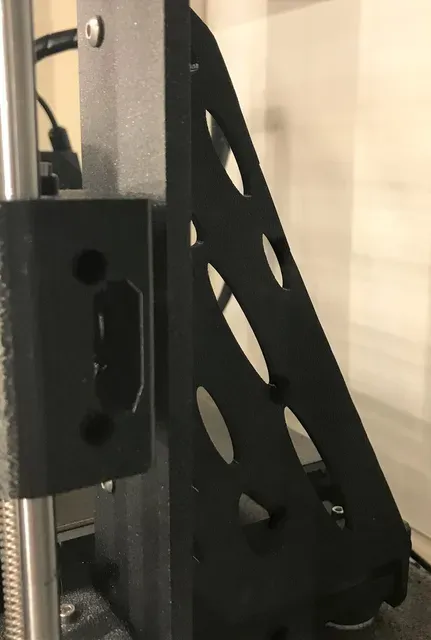

I built the Lack enclosure designed by Prusa ( https://www.prusaprinters.org/cheap-simple-3d-printer-enclosure/ ), and wanted to move my Power Supply outside the enclosure since I would be printing ABS.

But, the replacement frame brace didn't seem like it was enough, and was - quite frankly - boring.

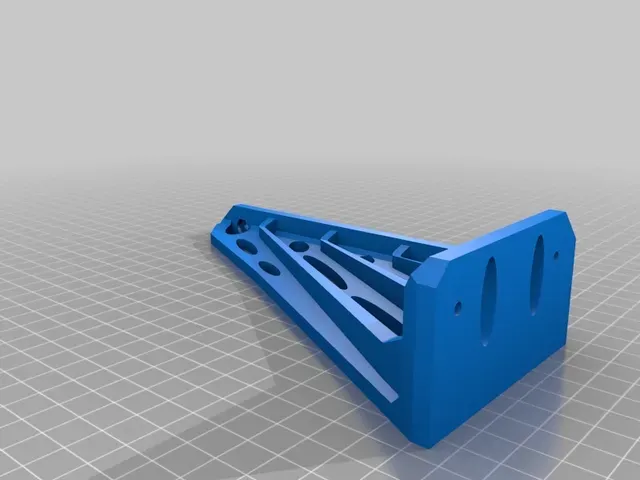

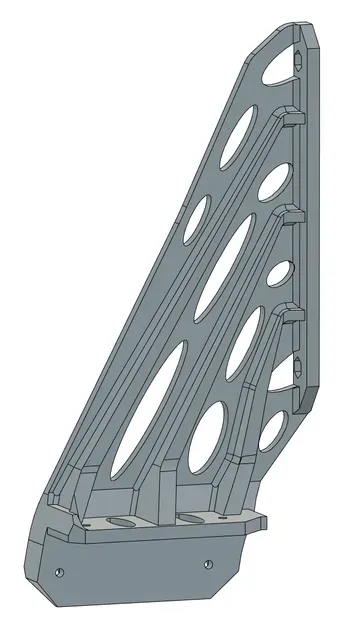

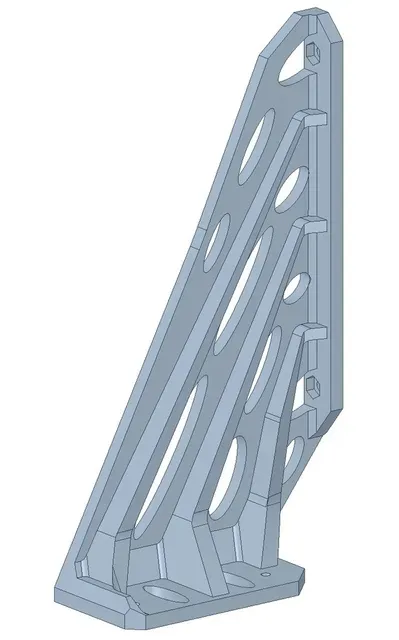

I redesigned the brace with additional ribs, material removal cutouts, and re-positioned the main face to give a much stiffer result.

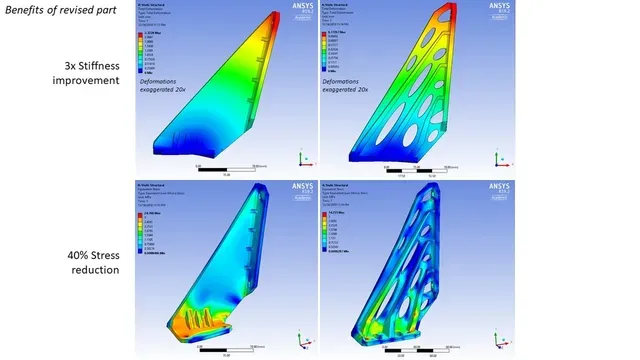

Plus, I think it looks cool and I got to play with some analysis tools (which is always fun).

This is a very easy print; no supports are necessary.

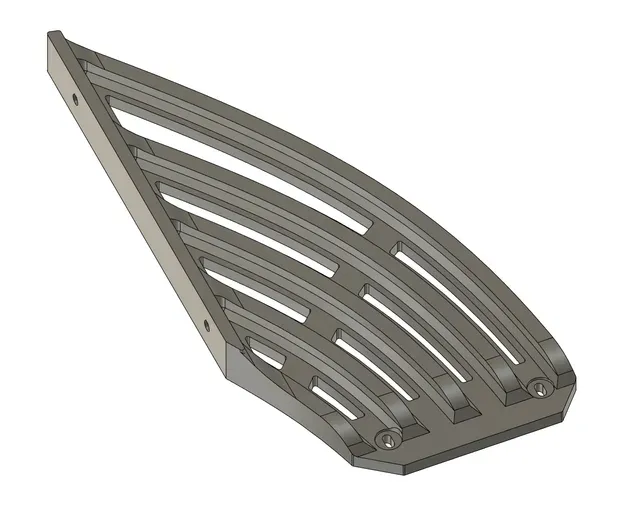

Edit 2023-07-03: Added additional models that should fit the Mk3S/S+ and Mk4 Delta (black) PSU frame mounting location (with 30x30 frame extrusion slot-nuts on the side).

Model List

Mk3 (Silver PSU): PSUBrace_Redesign_v1.stl

Universal Model: PSU_Brace_BwD_ Sliver_or_Black_v5.3mf

Mk3S+ and Mk4 (Black PSU): PSU_Brace_BwD_Mk3S_Mk4 v12.3mf

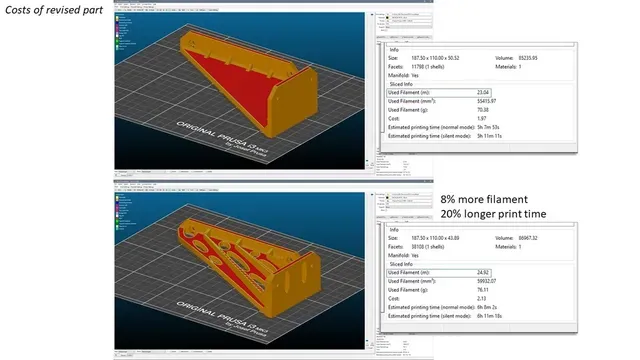

Print Settings

Printer Brand:

Prusa

Printer:

i3 MK3

Rafts:

No

Supports:

No

Resolution:

.2

Infill:

Any

Filament: Not PLA or TPU

Notes:

Recommendation: Print with 3 perimeters - more may be overkill.

Category: 3D Printer Parts, Mk3, Mk3S, Mk3S+, Mk4 (Silver or Black PSUs)
