Camlock adapter for Nilfisk Multi ii

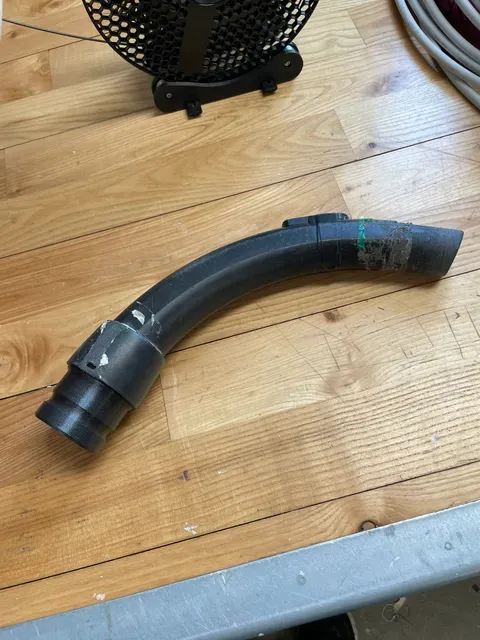

I was tired of the handle when using power tools. The locking ring broke, which made me adapt to the camlock system.

Preconditions to use this adapter: You need to cut the hose to use it. You need the female Camlock adapter: https://www.printables.com/model/461256-shopvac-50mm-camlock-connectors-with-magnetic-catc You need an adapter for the hose to fit the Camlock female adapter: https://www.printables.com/model/493835-camlock-adapter-for-35-75mm-hoses

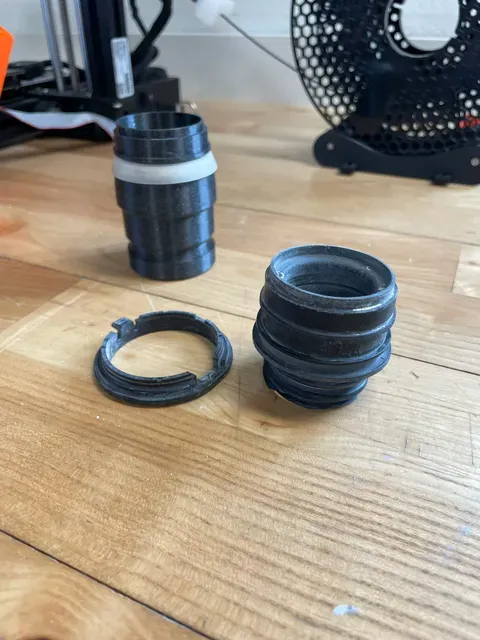

To use this adapter: Remove the locking ring from the original Nilfisk adapter Cut the adapter off the hose Take the sealing ring off the original adapter and move it to the new part The new adapter fits into a slot in the handle and has to be glued the handle.

Prints without support. I printed in PLA and with 50% infill, 0.15 layer height, not neccesary but i like these tools to be in a good quality.
