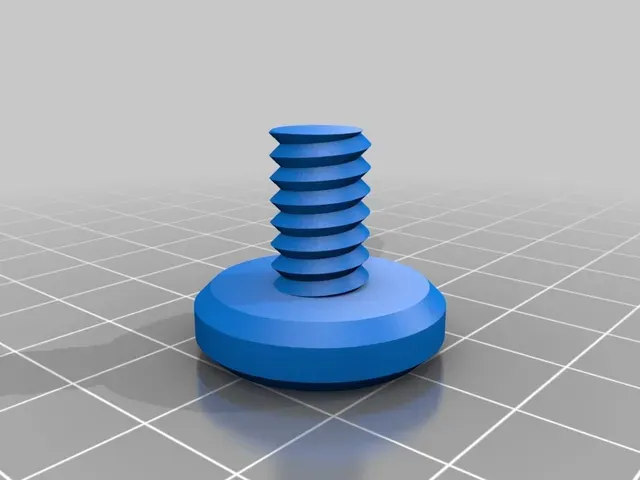

My Customized Bolt

Customized version of http://www.thingiverse.com/thing:193647

Created with Customizer! http://www.thingiverse.com/apps/customizer/run?thing\_id=193647

Instructions

Using the following options:

thickness = 2

head_type = socket

thread_outer_diameter = 9

drive_diameter = 5

nut_diameter = 20

type = bolt

nut_thread_step = 2

wing_ratio = 1

thread_step = 2

slot_width = 0

resolution = 0.5

head_height = 6

nut_resolution = 0.5

head_diameter = 20

step_shape_degrees = 45

countersink = 0

non_thread_diameter = 0

texture = exclude

outer_diameter = 14

nut_thread_outer_diameter = 10

nut_height = 20

slot_depth = 2

inner_diameter = 8

drive_type = socket

non_thread_length = 0

nut_type = normal

nut_step_shape_degrees = 45

facets = 6

thread_length = 14

Category: Parts
