ADS-B 1090 PCB Antenna Mount

Model details

Platform
Printables
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
STL
  • 7 Likes
  • 58 Downloads
  • 1 Makes
  • 1 Comments
  • 1 044 Views

This model on other platforms

Author:darken

Published

Download on Printables

Description

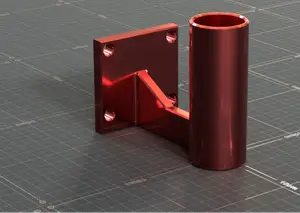

90° mount for a 1090Mhz PCB antenna used with ADS-B receivers, mount via sticky tape or cable ties.

Can be purchased here https://www.gns-electronics.de/product/ads-b-pcb-antenna-sma-female-ten-90/

It's a tight fight, depending on your tolerances (and the PCB ones), file it down a bit or increase the print by 1%.

Tags

antennaadsbantennamount1090
