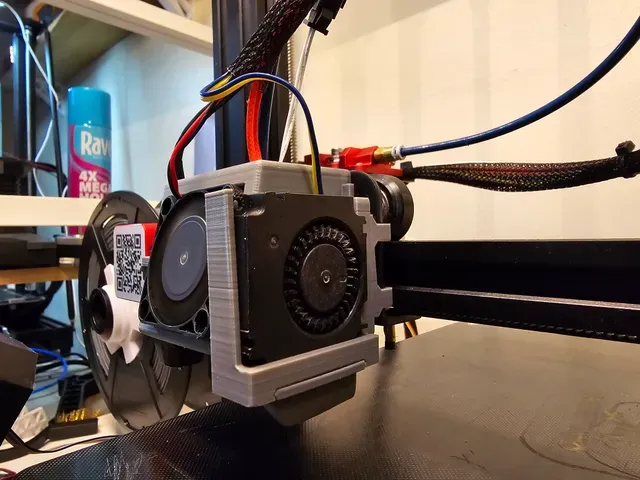

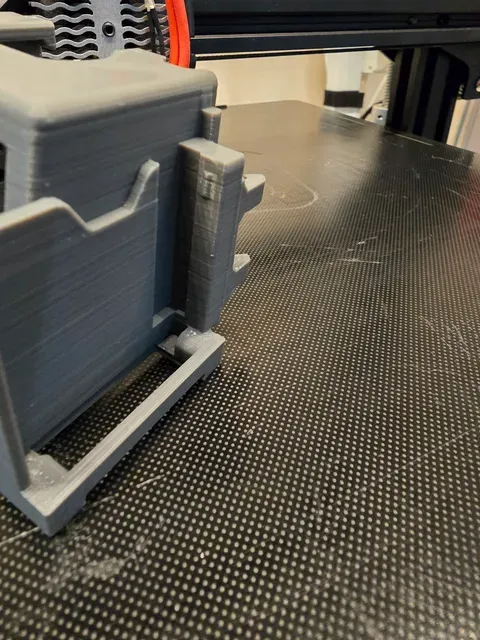

WIP - Ender 3 Max Neo Hot End Shroud

I was not too fond of many of the shrouds I found for the Max Neo. The more I looked at the Neo X carriage on the Ender3Neo and the Ender3v2Neo. I found a few that I took parts of and mixed to make it work. Now it is a Work In Progress.

I used Minimus Cooler System duc and the side for the fan.

I wanted to keep all the OEM parts as I could to do an easy change.

It will work for the CR touch as you can see. Will also work with the BIQU mini probe if needed.

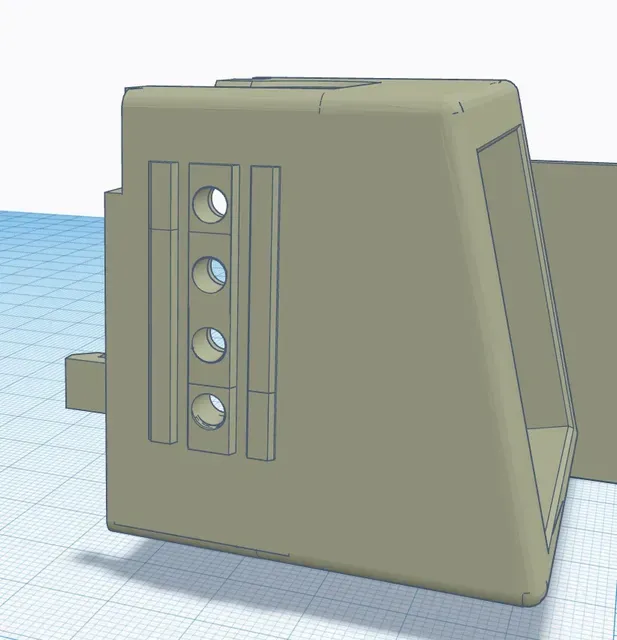

I used 3mm screws and 3mm inserts for the auto level. it can be adjusted for your needs. Also, the is a place for another insert on the back top attached if you want to do that. I did not. The shroud clips in place and has a strong hold.

I put a groove on the inside for the side fan cable. The front fan fits very well without screws but I did not go that way and I may put a groove in later for the front fan cable.
