Microscope Adapter ring Swift - M42
Model details
- Platform
Printables
- Price
- Free
- License
- CC-BY-NC
- Print and modify for yourself with credit; no selling the model or prints.
- Formats
- STL
- 5 Likes
- 46 Downloads
- 0 Makes
- 0 Comments
- 648 Views
Description
Edit 22 Nov 2021
re designed, to fit 23.2mm eyepieces and tube length 160mm
new -stl is:
Eyepiece_adapter_swift_23-2mm_160_M42_1
Adapter ring for mounting a camera on the Swift polarizing microscope.
It substitutes the eyepiece holder; it has 42 x 1 mm male thread on top.
The inner hole has the diameter to hold astronomical eyepieces, 1,25 inches.

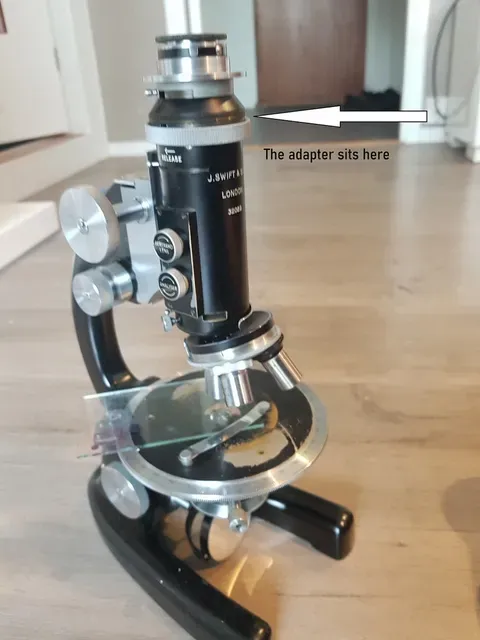

The microscope for which it fits is the old Swift polarizing microscope, with 34,8 mm barrel hole and a flange screw of about 46,8 mm, as from the photo. I don't knof if can fit other microscopes. This model is described by Ian Walker:
http://www.microscopy-uk.org.uk/mag/indexmag.html?http://www.microscopy-uk.org.uk/mag/artapr04/iwswift.html
Print Settings
Printer Brand:
Ultimaker
Printer:
S5
Rafts:
No
Supports:
No
Resolution:
0,10 - 0,15
Infill:
100 - 50%
Filament:
Ultimaker PLA/Nylon Black
Notes:
Best if printed with PLA for dimensional accuracy, or Nylon for strength. Better with no raft or support. Put accuracy at max (it has 0,7 mm threads...)
Category: Parts
