Filament Guide - IKEA Lack Enclosure V2

Description

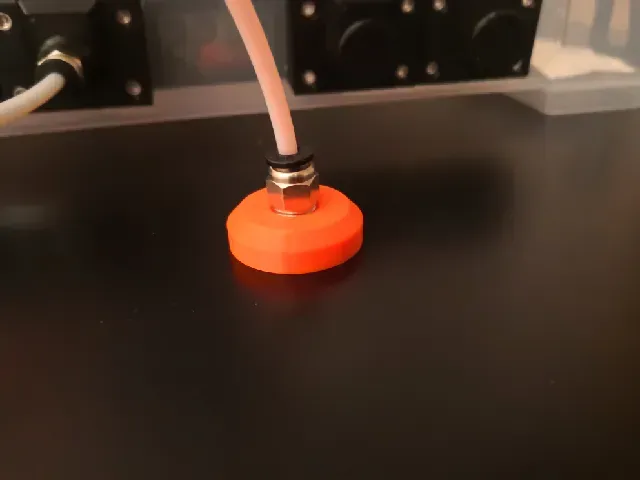

This is an easy to print and easy to assemble filament guide for the Prusa Enclosure V2 - MMU2S with the filament on the top Lack table. It is designed for 1,75 mm Filament.

This model uses the cut-out for the MMU2s in the top IKEA Lack table and with its short construction, it gives the filament a little more room, when your printer is near max. Z.

This model does not need any screws and it can also be used for any panels with a thickness of max. 0.4 mm.

Instruction

- Print all parts - Sometimes it helps to scale the inside part to 102% in X-Y Axis to get a better fit for the screw (Included in the G-Code) - Measure where the filament enters the extruder and take the middle position. It depends on how the printer is placed in the enclosure. - Drill a hole through the Lack table (Drill from the top to prevent damages on the top cover) - Screw the PC4-M10 Push Fitting into the outside part (wrench width - 10) and place it into the hole from the outside. - Place the inside part and screw it together with the outside piece Measurement

Outside

- Diameter - 30.00 mm - Height - 8.40 mm Inside

- Diameter - 50.00 mm - Height - 15.00 mm

Print instructions

Recommended Print Settings

- Infill: 15 % - Layer height: 0,20 mm - Supports: No Print Time

- Together: approx. 1:21 (hr:min) Required hardware

- PC4-M10 - Push Fitting (Amazon-DE - https://amzn.to/4mx4f4C ) - PTFE Tube with outer diameter - 4mm & inner diameter - 2mm (Amazon-DE - https://amzn.to/4mwH4Hu ) Tools

- drilling machine (Amazon DE - https://amzn.to/3SP7lTU ) - 12 mm Drill (Amazon-DE - https://amzn.to/4dAiEsD ) Tested Printer

- Prusa i3 MK3S+ Drucker Tested Filament

- Prusament PETG Prusa Orange

Updates

2025.05.25: Update-Links

If you have any questions or improvements/suggestions do not hesitate to contact me !

If you like what you see, consider following me to support my work - more to come -
