Big LED Arch

Big LED Arch with only 3 different parts to print.

No support needed, just use brim for the Arch.

You need to print:

- 14x Arch.stl, - 1x Base1.stl or Base1_touch.stl and 1x Base2.stl Each base have cutouts for 7 x M12 nuts (the Touch-Version 8x), to add weight (about 100g per side). It's not needed, but could add stability. To insert the nuts you must stop the print after 10.7mm layer! (M600 - Filament change)

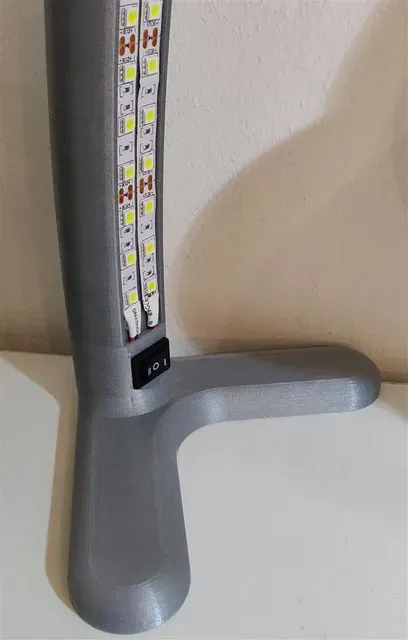

The switch hole on Base1 is 13x20mm (you can ad a support there, but is not needed). Matching switches: 2 way rocker On-Off , 3 way rocker On-Off-On

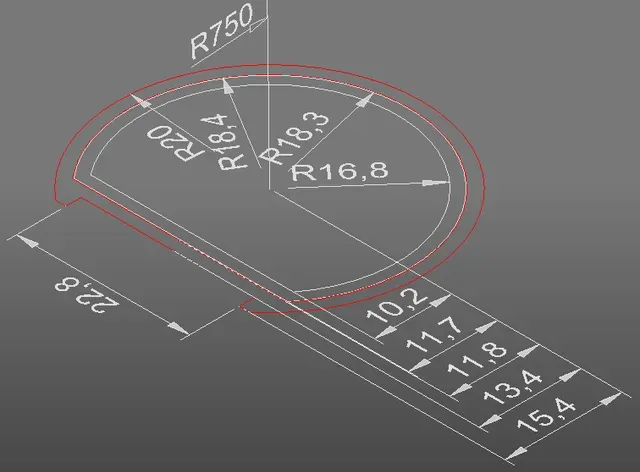

On the Arch there fits two 10mm LED Strips side by side with a length of 230cm, 100cm on the 71 arch.

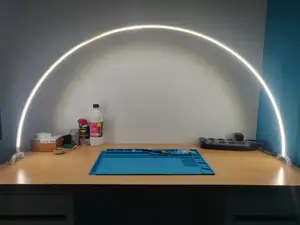

Size assembled: Width: 154cm Height: 81cm

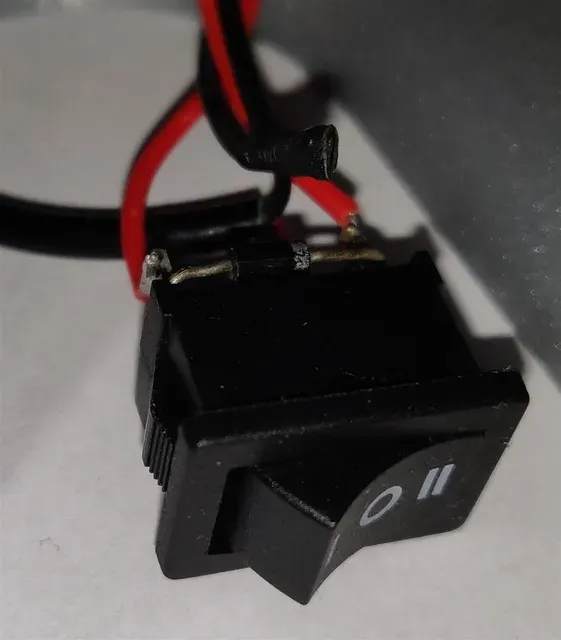

If you want to use the 3 way rocker: You can solder the + from stripe one to "I", the + from stripe two to "II", the power on the center of the switch and a diode (1n4007) between I and II. If switch position "I",one stripe lights up,and if switch position "II" both stripes lights up.

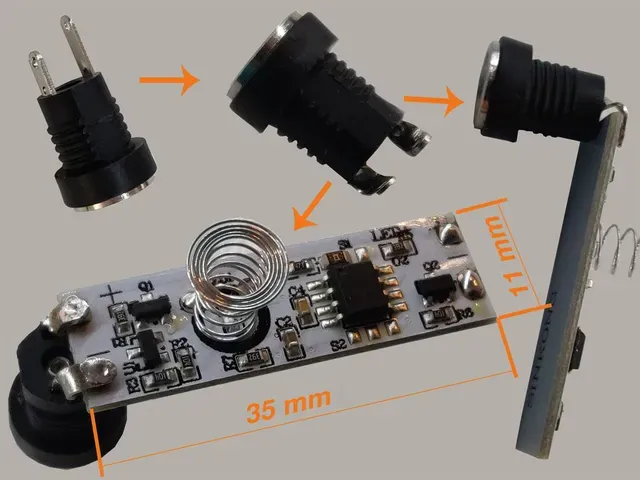

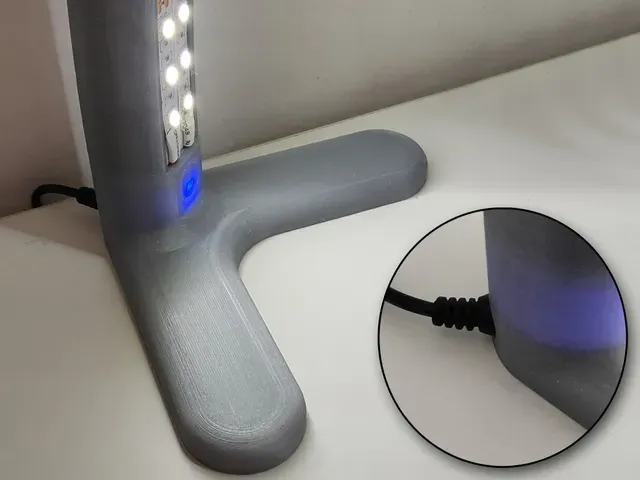

Update: (30.08.2019) I add a Version with a Brightness Control - Touch Sensor Switch Module and a 5,5/2,1mm DC Mount. ( Touch Switch Capacitive Sensor SINKONG by ebay )

Update: (23.03.2023) On request I created a diffuser, so I add two Diffuser (Round and Flat)

Update: (20.02.2024) [untested] On request I add a arch piece for width 71cm, print it seven times for a semicircle. The bases should work, shorten the stub of the Base1 and the last arch piece connected to Base2 slightly.

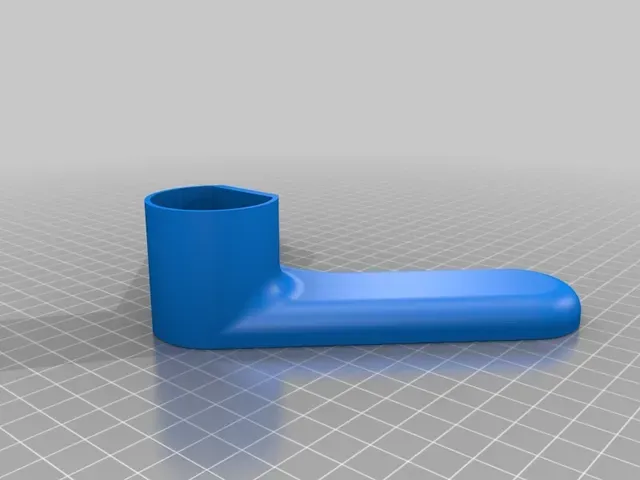

Update: (03.06.2024) On request I add a straight pipe piece.

Notes:

About 5 days of printtime and use about 870g of filament.
