Soldering Fume Extractor (120mm and 140mm Fan)

Model details

Platform
Printables
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
STEP
  • 6 Likes
  • 59 Downloads
  • 0 Makes
  • 0 Comments
  • 802 Views

Author:ReaperSVK

Published

Download on Printables

Description

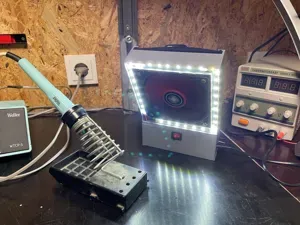

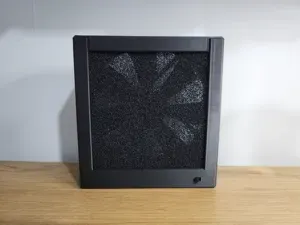

I really liked the Fume Extractor from arbys_workshop . However, I wanted to be able to use both 120mm and 140mm fans.

Parts used:

4mm banana socket black https://www.tme.com/us/en-us/details/d-3231/4mm-banana-sockets/

4mm banana socket red https://www.tme.com/us/en-us/details/d-3230/4mm-banana-sockets/

DC supply socket https://www.tme.com/us/en-us/details/pc-g2.1/dc-power-connectors/

Rocker switch https://www.tme.com/us/en-us/details/ra11131121/rocker-switches/e-switch/

4x M4 Countersunk Head Tapping screw supplied with every PC fan
