Lithophane Lightbox

Lithophane Lightbox for BambuLab LED Lamp Kit 001

I let this website create a Lithophane model out of a picture I uploaded.

Make the Lithophane a circle of 120 mm in diameter and let it have a thickness of 4 mm maximum.

Then I created this frame for it with the intention to use the BambuLab LED Lamp Kit 001 with it.

Print settings

- 0.16 mm layer height - support: yes - normal - brim: yes - 5 mm and 0.2 mm space between Helpful if you are using a smooth plate:

- first layer speed 25 mm/s - first layer infill speed 60 mm/s

Assembly Instructions

1 - After printing the model for the frame and your personal Lithophane make sure the Lithophane fits into the frame correctly.

2 - Then lead the cable of the LED-Lamp through the hole in the back of the frame and make sure the lamp also fits correctly.

3 - Now take the double sided tape that came with the kit and put it out of center , almost at the border, onto the back of the lamp .

4 - Remove the cover of the tape and then put the lamp as straight as possible (or to your liking) into the frame and press it down for a few seconds.

5 - Now you can put the picture in - If your fit is tight enough so the picture does not fall out then this was it, you're done!

But if not, then just put a little bit of glue on the small ring of the frame and then make sure to wait until the glue is fully dried after putting the picture in.

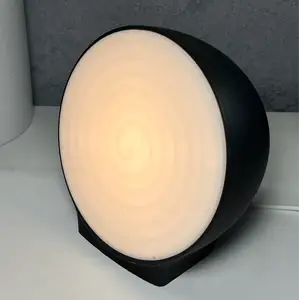

(In this image you see the sample print included in the .3mf file - it has a loose fit)
