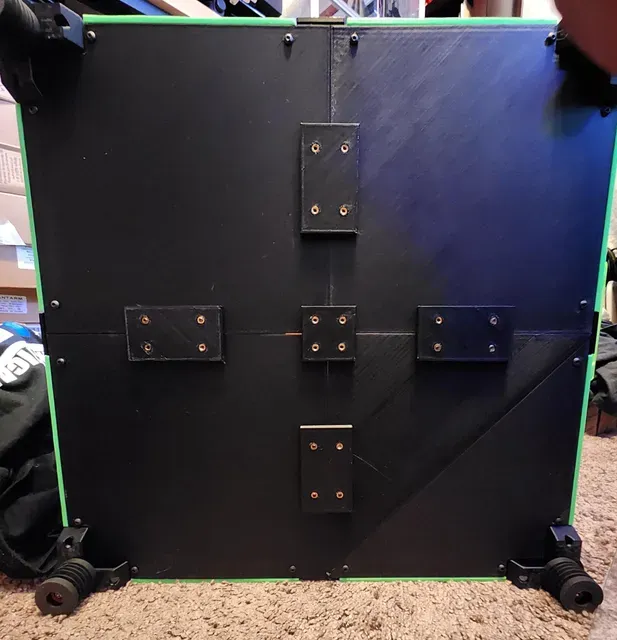

Zero G Mercury one.1 for Ender 5 pro Bottom Panel Electronics enclosure

Model details

Platform
Printables
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
3MFSTL
  • 30 Likes
  • 130 Downloads
  • 0 Makes
  • 3 Comments
  • 1 928 Views

Author:j____t_____

Published

Description

I don't have a laser cutter large enough for the bottom panel of the Mercury One.1 electronic enclosure, so I was looking around for an alternative option. Thinking that the Sovol SV05 was the same dimensionally as the Ender 5 Pro because of the clear inspiration, I printed the original design by Capsopie and found the pieces a bit long by about 28mm for the Ender 5 pro. Since there was a gap between the longer far edges and the mounting holes I just snipped off uniform sections to fit. The rest of the connectors are unchanged but included as originally created by Capsopie to complete the set. As in the original, add m3x4 heat set inserts to the connector holes and screw them to the panels from the top with m3x8mm screws.
