Prusa MINI Bear Full Upgrade

I share model files used for mini bear.

Some of the MK3s Bear models have been modified to fit Prusa Mini.

https://github.com/gregsaun/prusa_i3_bear_upgrade

Please refer to Prusa Bear Github for assembly instructions.

https://github.com/gregsaun/prusa_i3_bear_upgrade#assembly-guide

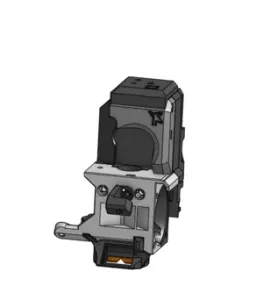

Please refer to the link below for Direct extruder for Mini with filament detection sensor.

Prusa MINI Direct Extruder with IR Sensor by Kim, Kyoung-Joong | Download free STL model | PrusaPrinters

Please refer to the link below for the buddy board case for MINI Bear.

Prusa MINI Bear Full Upgrade Buddy Board Box by Kim, Kyoung-Joong | Download free STL model | PrusaPrinters

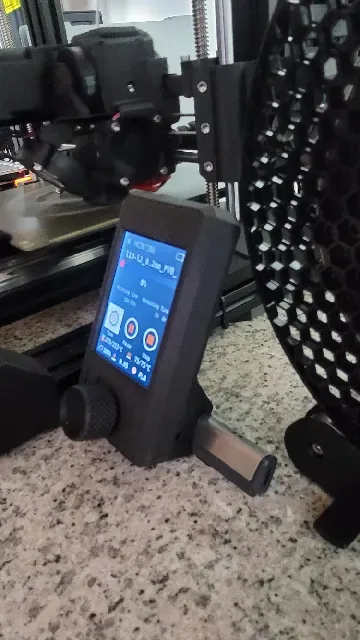

Please refer to the link below for the MINI LCD + USB case

Prusa MINI Bear LCD Back Cover by Kim, Kyoung-Joong | Download free STL model | PrusaPrinters

The Z-axis distribution method was done the way 3DPGVA did, you can see the site link below.

https://github.com/3DPGVA/Split-Z-Axis-for-MINI

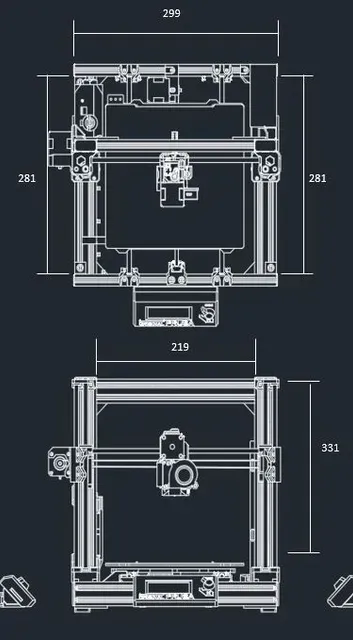

Profile aluminum.

Y Axis :

20x40 281mm x 2 HFSB5-2040-281-RTP

20x20 281mm x 2 HFSB5-2020-281-RTP

2040 299mm x 2 HFSB5-2040-299-RTP

Z axis

20x40 331 x 2 HFSB5-2040-331-RTP

20x40 219 x 1 HFSB5-2040-219-RTP

THK LM

X Axis : 1SRS12MUU x 280L x 1

Y Axis : 2SRS12MUU x 290L x 1

1SRS12MUU x 290L x 1

Smooth rod

Z-axis : 290mm x 2

X Axis : 280mm x 1

I hope you enjoy the Prusa Mini Mod.
