Moss Pole (Watering Attachments)

Watering Attachment Options for the Moss Pole ( Original (118mm) & Petit (70mm) ) by MochPoch

Decided to separate the optional accessories of the climbing support system so that the original listings are not cluttered.

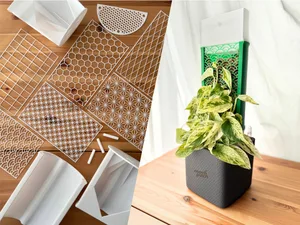

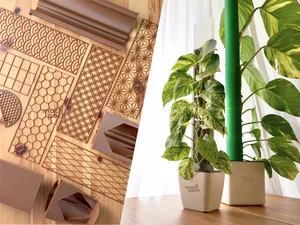

New Bamboo moss pole system has been released. Click here 🌱

Licensing

If you'd like to support my projects or obtain a commercial license, consider joining my Patreon membership: https://www.patreon.com/MochPoch

For one-time support, you can also fuel my creativity with a cup of coffee: https://buymeacoffee.com/MochPoch

Build and Compatibility

The watering attachments are available for 2 versions of the pole:

- Original (118mm) - Petit (70mm) There are currently 2 watering options:

- Top-down: drip watering - Bottom-up: wick watering

Option 1

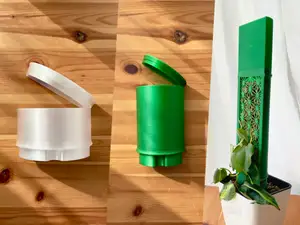

Top-down: Drip watering method

This is my take on the pole watering method of using a funnel and an inverted water bottle. If balancing funnels or dealing with messy watering routines has been a hassle, this attachment offers a stable and slower drip method to keep your plants happy.

Available in 150ml and 300ml sizes, it easily attaches to the top of your moss pole. You can choose from three versions with 1, 2, or 3 holes to adjust the water flow rate to your needs.

Print Configuration

Orient the model with the watering hole(s) on the bed plate

Strength

Parameter Value

Wall Loop 3

Top Shell Layers 3

Bottom Shell Layers 5

Support

Parameter Value

Support Type Tree (Auto)

Style Organic

Tree support branch angle 45

Top Z distance 0.25

Base Pattern Hollow

Top interface layers 3

Top interface spacing 0.7

Material and Post Processing

It is advised to use filaments that are better in contact with water (like ABS) but I've only tested the models with both PLA and PETG. While not required, applying a sealant inside the reservoir can help prolong the life of the attachment.

Assembly

Simply attach the reservoir to the top of the pole, ensuring the hole(s) touches the pole medium to break surface tension.

Some Notes

- The drip holes must come in contact with the pole medium. - One may notice that the water doesn't necessarily drip out of the hole once this topper is filled. This is intended. The pole medium (moss, for example) must come in contact with the drip hole to break the surface tension. - From my experience, 150ml is enough to soak the 200mm backing. (I personally prefer the single or double holed ones) However, it still depends on: - the watering frequency and volume - the medium type. - Make sure to check the medium (crunch test) and avoid overwatering. - Do not let the medium dry out completely as it will make watering difficult. (The water passes faster than the medium could absorb it).

Option 2

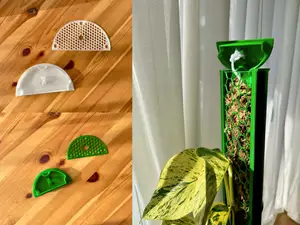

Bottom-up: Wick watering method

This was requested by a user over at a different platform. Their setup used LECA balls as the medium and needed a cap with a wick holder.

It comes in 10mm and 12mm wick diameter options. Just tie one end of the wick to the cap and place the other end in a water reservoir. Suitable for hydro, semi-hydro setups, or traditional potting mediums.
