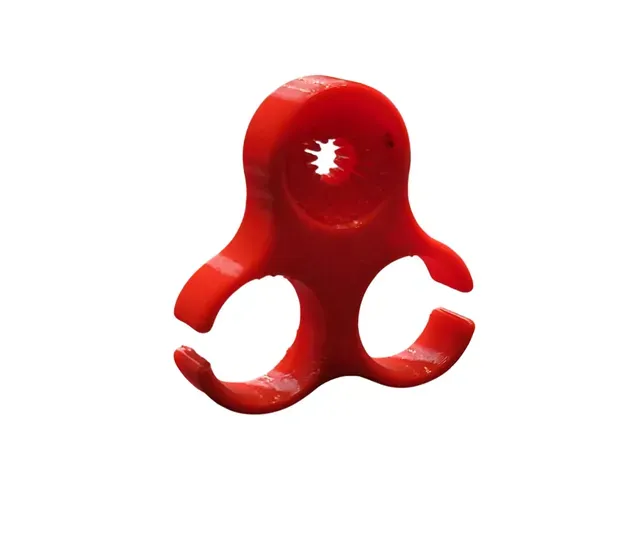

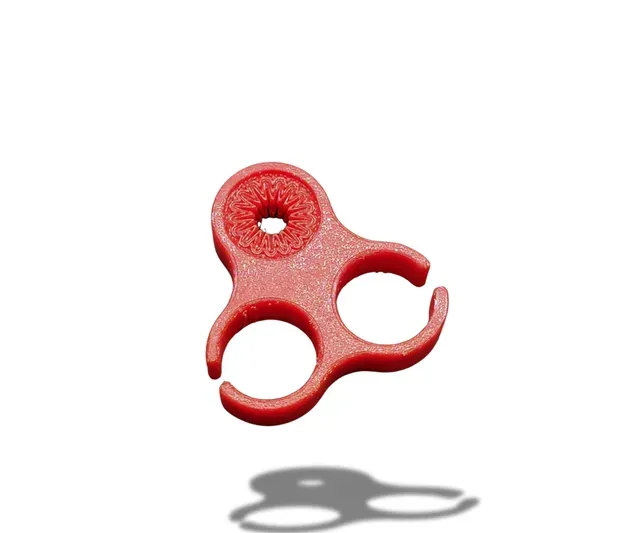

Finger Brush Holder

Applications and Impact:

The Flexible Finger Brush Holder is designed to assist individuals with fine motor skills, hand stability, or coordination challenges in painting, drawing and writing. Its flexible design adapts to various hand shapes and tools, offering a secure and personalized fit.

Project Details:

- Estimated Manufacturing Time: 35 Minutes - Materials Needed: TPU filament - Technologies Used: 3D Printing

Print Settings:

- Printer Model: Original Prusa MK4 - Layer Height: 0.2mm - Infill Density: 20% - Perimeters: 3 - Supports: Yes (Organic reccomended)

Bill of Materials (BOM):

Item # Item Description Material Manufacturing Instructions Qty Supplier Link

1 Finger Brush Holder TPU Filament 3D Print at 0.2mm layer height, 20% infill, 3 perimiters and with supports enabled 7 grams [Link]

Assembly Instructions:

- Print the Finger Brush Holder using the provided STL file. - Allow the print to cool and remove any excess filament. - Insert the Brush, marker, pen or pencil into the holder. - Adjust the holder to securely fit the user's Fingers.

We encourage you to share your makes and remixes of the Finger Brush Holder to inspire others, improve the design, and showcase customizations!

For further documentation and to explore other open source assistive tech solutions you can visit tomglobal.org
