Cyclone Marble Machine drive cap for Lego Mindstorms

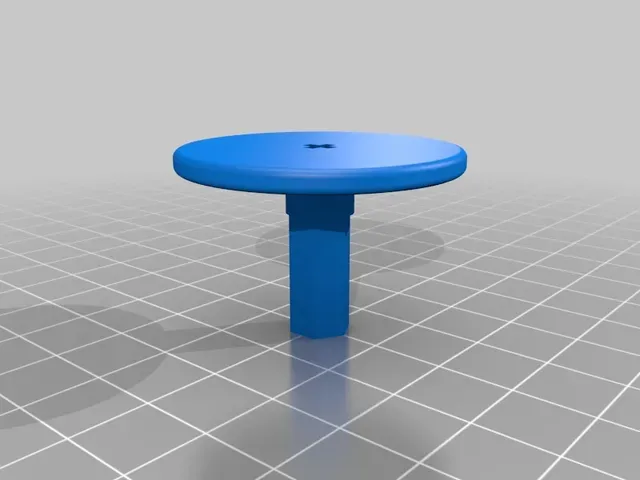

I printed @mroek's Cyclone triple track marble machine and loved it. However, being rather lazy I wanted an easier way to operate the marble lift. So I replaced the drive cap with my own that has a Phillips' indentation at the top, thus allowing a Lego Mindstorms motor to drive it with ease.

mroek's Cyclone triple track marble machine:

http://www.thingiverse.com/thing:1340784

* IMPORTANT * Because the original STL for the marble machine was too large to print using my Dreamer, I printed the marble machine at 90% scale . Therefore, this cap will ONLY fit a 90% scaled machine! You could try scaling this cap UP to 111% which might then fit the original scaled machine.

Here's my video of it in action:

Print Settings

Printer Brand:

FlashForge

Printer: FlashForge Creator Pro

Rafts:

No

Supports: No

Resolution:

0.2

Notes:

I printed this with the wide base on the print bed, and the drive shaft pointed vertically up.

* IMPORTANT *

Because the original STL for the marble machine was too large to print using my Dreamer, I printed the marble machine at 90% scale . Therefore, this cap will ONLY fit a 90% scaled machine!

Category: Mechanical Toys
